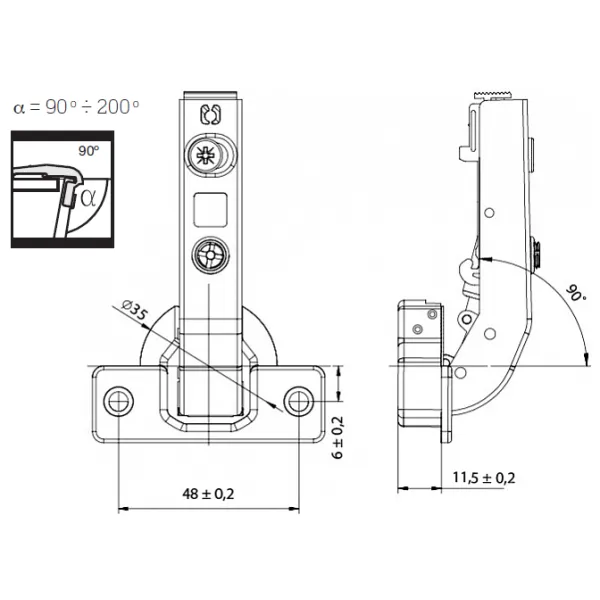

Hinge Ø35mm 90° single plane, soft close
Item code: L-IS0090
Item code copied!
Hinge Ø35mm 90° single plane, soft close
Hinge Ø35mm 90° single plane, soft close
Hinge Ø35mm 90° single plane, soft close

Hinge Ø35mm 90° single plane, soft close

Item code: L-IS0090
Item code copied!
€5.13
pcs (with VAT)
Item is sold out and unavailable.
Delivery time: 55 business days*
MESUCO 131X series hinge with soft-close function   Technical specifications:Quick mountingSold separately:  Mounting plate for METALLA CLIP COMBI hinge L-HPS00...
Min. 1
Description

MESUCO 131X series hinge with soft-close function

Technical specifications:
  • Quick mounting
Sold separately:
  • Mounting plate for METALLA CLIP COMBI hinge L-HPS00
  • Mounting plate for METALLA CLIP COMBI hinge with adjustable eccentric screw L-HPS10
Product Details

Data sheet

BrandIndaux
Opening angle, ° 110
Type of facade One plane
Door material Board
Comfort functions opening/closing With soft closing
Cup depth, mm 11.5
Cup width, mm 35
Series Mesuco 131X
Diameter, mm 35
Colour nickel
Screw drilling dimensions, mm 48/6
Door thickness, mm 14-26
Installation CLIP/SM quick fixing
