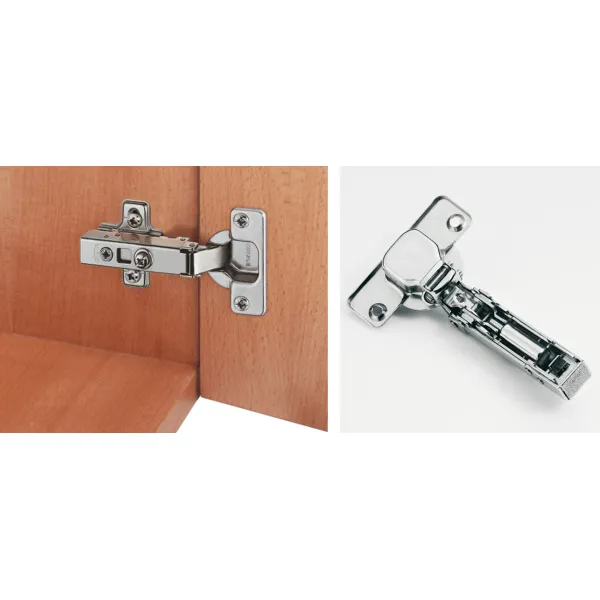

Concealed hinge, Häfele Metalla SM Combi 110°, full overlay mounting
Item code: L-H60620
Item code copied!
Concealed hinge, Häfele Metalla SM Combi 110°, full overlay mounting
Item code: L-H60620
Item code copied!
€2.63
pcs
(with VAT)
Item in stock.
Delivery time: 1-3 business days*
METALLA CLIP COMBI series hinge
Technical specifications:
- Quick mounting
- METALLA CLIP COMBI series standard hinges can be combined with hinges featuring soft-close function
Sold separately:
- Mounting plate for METALLA CLIP COMBI hinge L-HPS00
- Mounting plate for METALLA CLIP COMBI hinge with adjustable eccentric screw L-HPS10
Data sheet
| Brand | Häfele |
|---|---|
| Opening angle, ° | 110 |
| Type of facade | External |
| Door material | Board |
| Comfort functions opening/closing | Su pritraukimu |
| Cup depth, mm | 12 |
| Cup width, mm | 35 |
| Material | steel |
| Series | Metalla 300 |
| Colour | nickel |

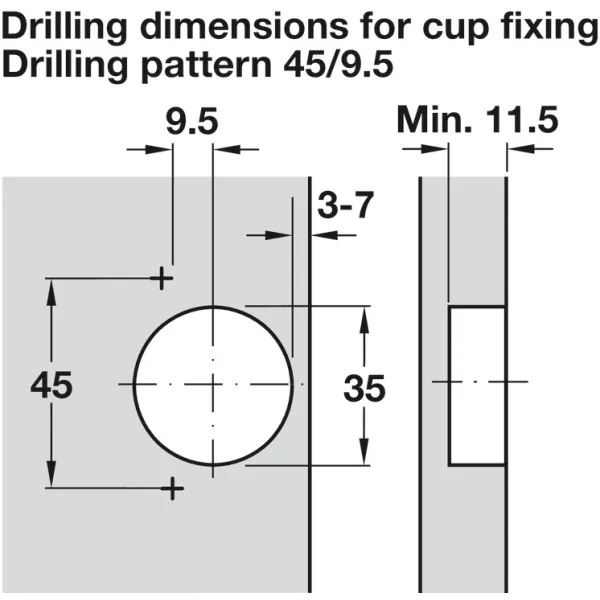

| Screw drilling dimensions, mm | 48/6 |
| Door thickness, mm | 14-22 |
| Vendor item no. | 311.60.620 |
| Installation | CLIP/SM quick fixing |
