Rail end support, Häfele Dresscode, OVA
Item code: X80317600
Item code copied!
Rail end support, Häfele Dresscode, OVA
Item code: X80317600
Item code copied!
€9.55
set
(with VAT)
Item is not in stock and is available for special order only.
Delivery time: 7-15 business days*

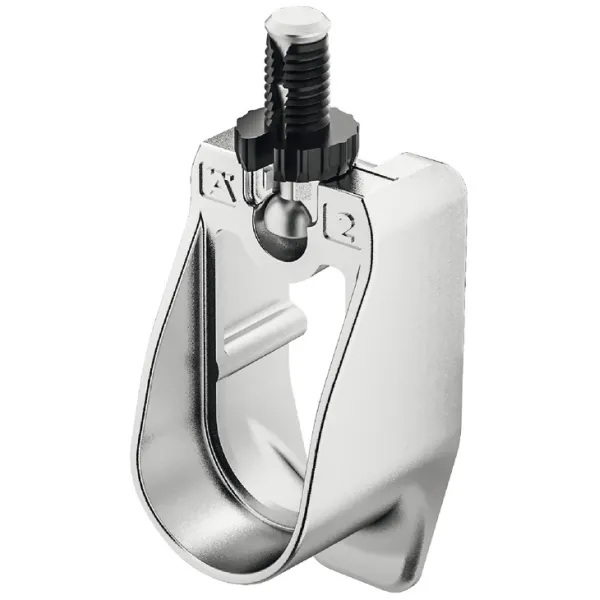

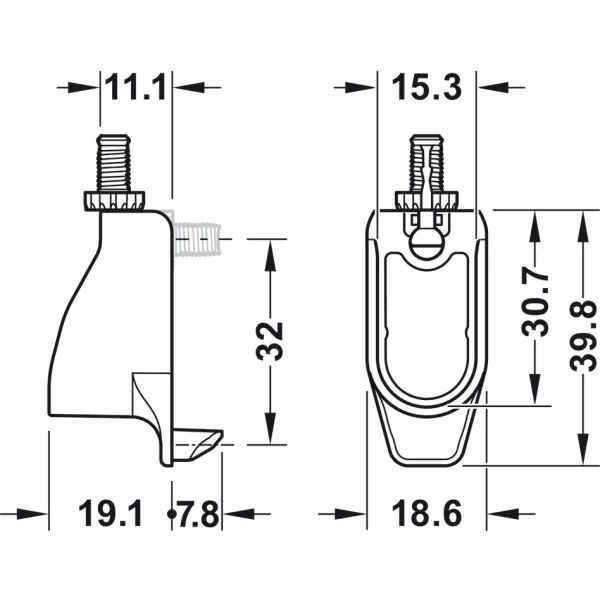

Rail end support, designed for mounting oval 30x15 mm tube in furniture panels or DressCode aluminium profile system
Technical specifications:
- Simple installation removal or position adjustment without tools
Mounting method:
- Holders are inserted into Ø5 mm drill holes and folded, tube placed from above
- Required tube length = internal module width (mm) - 27 mm
DressCode profile system and wardrobe accessories mounting (video)
For installation in the DressCode aluminium profile system crosspieces (2 pcs) are additionally ordered
Set includes:
- Foldable brackets – 2 pcs
Data sheet
| Brand | Häfele |
|---|---|
| Material | zinc alloy |
| Series | DressCode |
| Diameter, mm | 30x15 |
| Colour | nickel |
| Vendor item no. | 803.17.600 |
