Double flap lift-up fitting, Free fold for flaps made from wood or with aluminium frame
Item code: M-HH/F-FOLD/750/G4
Item code copied!
Double flap lift-up fitting, Free fold for flaps made from wood or with aluminium frame
Item code: M-HH/F-FOLD/750/G4
Item code copied!
€154.99
set
(with VAT)
Item is not in stock and is available for special order only.
Delivery time: 7-15 business days*

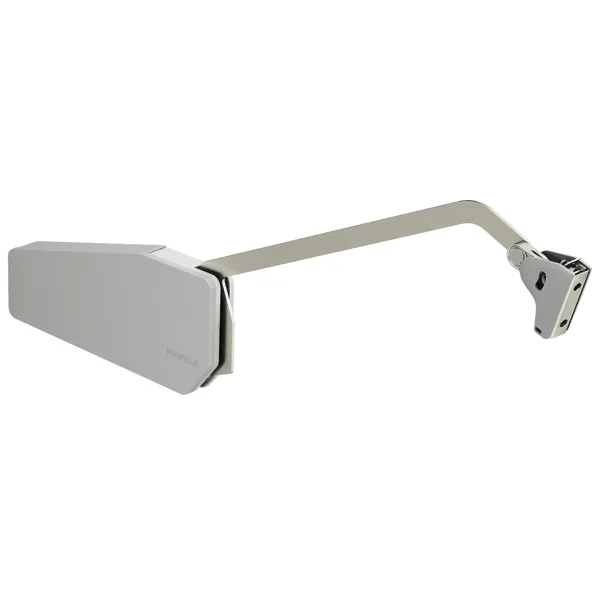

Folding door mechanism with integrated soft-close system
Technical specifications:
- Recommended for doors 480–1040 mm high and weighing 2.2–20.9 kg
- Doors can be held open at any height
- Adjustable lifting force
- Intermediate hinges prevent finger injuries
Intermediate hinges M-HH/L senso must be ordered separately
Intermediate hinge for FOLD mechanism
Available additionally: adapters M-HH/F-FOLD/A for doors with narrow 20 mm aluminium frame
Set includes:
- Mechanism – 2 pcs (left + right)
- Mounting components for wooden or wide aluminium frame doors – 2 pcs
- Covers – 2 pcs (left + right)
Data sheet
| Brand | Häfele |
|---|---|
| Facade weight, kg | 5.2-10.3 |
| Door material | Board |
| Comfort functions opening/closing | With soft closing |
| Material | plastic |
| Module height, mm | 710-790 |
| Colour | grey |
| Load capacity, kg | 5.2-10.3 |
| External module height, mm | 710-790 |
| Supplied with | 1 double flap lift-up fitting set (1 piece each left/right, including front fixing brackets for wooden flaps or flaps with wide aluminium frame, installation instructions and paper drilling template), 1 set of cover caps, grey (1 piece each le |
| Vendor item no. | 372.37.553 |
Product photos are for illustrative purposes only. The actual appearance, colors, configuration, dimensions, and other features of the products may differ from those shown in the images. For accurate information, please refer to the product descriptions, technical specifications, instructions, and provided links.
