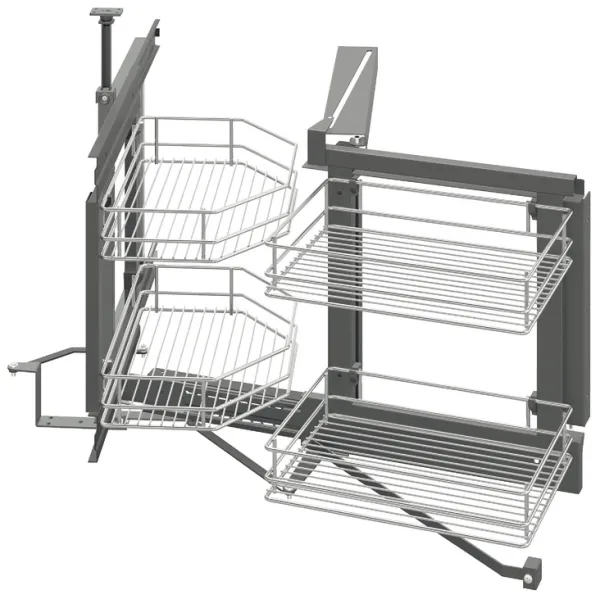

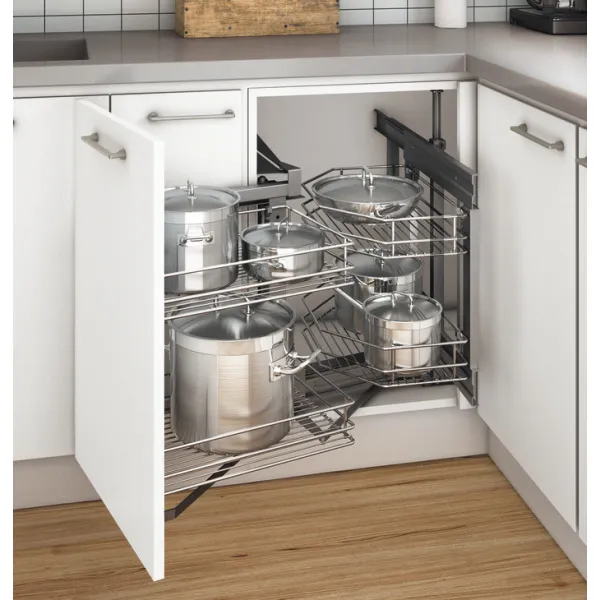

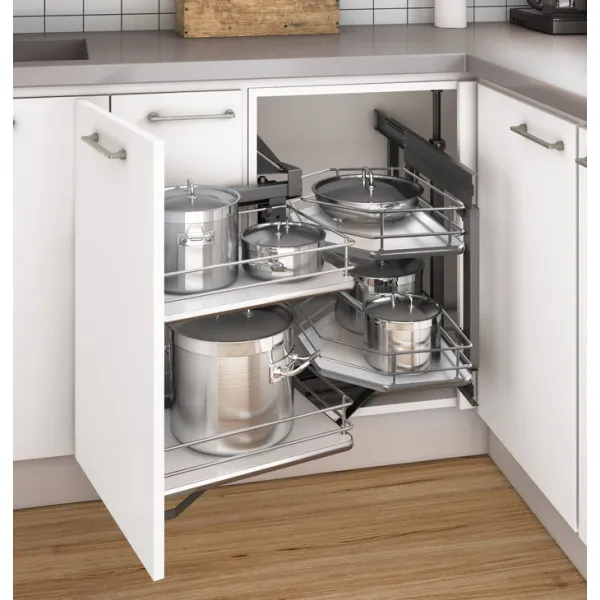

Pull out and turn for corner cabinets
Technical specifications:
- Integrated soft closing mechanism
- Mechanism load capacity up to 30 kg:
- front baskets 5 kg each
- rear baskets 10 kg each

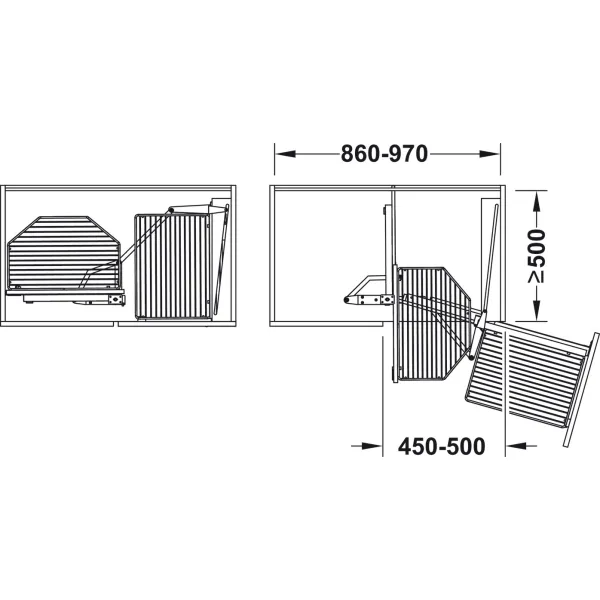

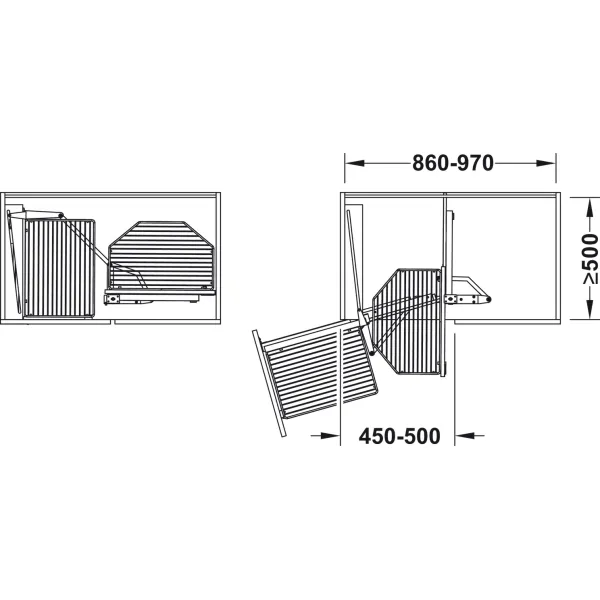

- Designed for doors with width 450–500 mm
- Recommended internal cabinet dimensions:
- height min. 620 mm
- depth min. 500 mm
- width 860–970 mm
Set includes:
- Pull-out corner mechanism – 1 pc
- Baskets – 4 pcs
Data sheet
| Brand | Häfele |
|---|---|
| Height, mm | 620 |
| Material | steel |
| Width, mm | 860 |
| Colour | chrome |
| Load capacity, kg | 30 |
| Side | right |
| External module width, mm | 450 |
| Supplied with | 1 corner unit pivoting extension fitting, 4 hanging baskets, chrome plated, 1 set of installation instructions |
| Vendor item no. | 542.00.203 |
Product photos are for illustrative purposes only. The actual appearance, colors, configuration, dimensions, and other features of the products may differ from those shown in the images. For accurate information, please refer to the product descriptions, technical specifications, instructions, and provided links.
