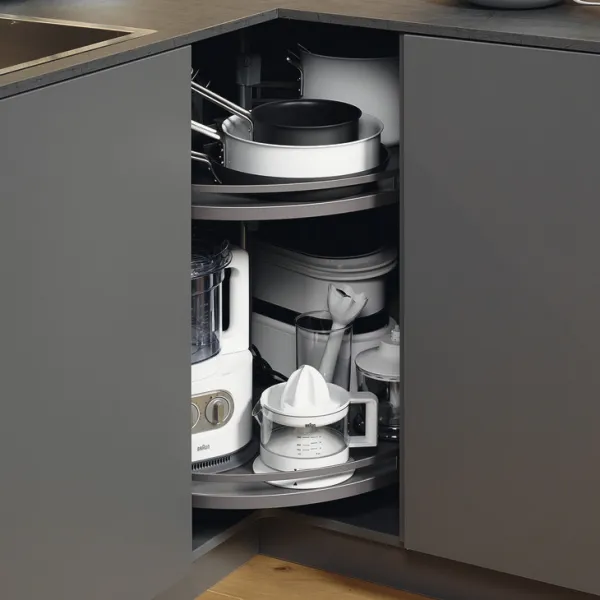

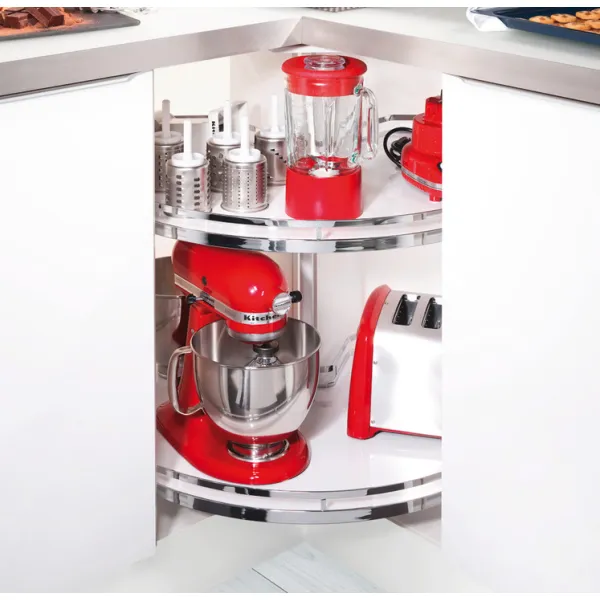

Three quarter circle carousel fitting, For corner cabinet, with 90° doors

Name: Three quarter circle carousel fitting, For corner cabinet, with 90° doors
Brand: Häfele
SKU: V-HP2/660A
Price: 221.64 EUR
Availability: PreOrder

Item code: V-HP2/660A

€221.64

set (with VAT)

Item is not in stock and is available for special order only.

Delivery time: 7-15 business days*

Three quarter circle carousel fitting Technical specifications:Doors attach to the carousel postWhen rotating the carousel the doors slide inward and rotate with the carouselOne sh...

Min. 1

set

favorite_border

Product variations

Height, mm

Colour

Description
Product Details

Description

Three quarter circle carousel fitting

Technical specifications:

Doors attach to the carousel post
When rotating the carousel the doors slide inward and rotate with the carousel
One shelf load capacity up to 20 kg
Designed for doors with width 250 or 350 mm
Quick and easy shelf installation
Easy adjustment of shelf mounting height
Rotation force adjustment

*Note: the dimension table indicates external cabinet module width and depth

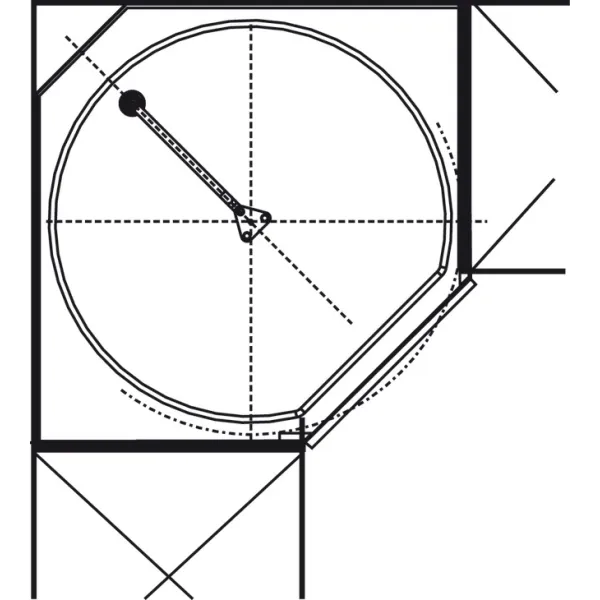

Mechanism mounting diagram (PDF)

Sold separately:

2 or 3 shelves V-HP3/4
1 or 2 shelf brackets (no additional bracket required for the bottom shelf)

Set includes:

Upper bracket
Post
Bracket for bottom shelf
Fixings

Product Details

Data sheet

Brand	Häfele
Height, mm	660-860
Material	steel
Colour	anthracite
External module width, mm	800/900
External module depth, mm	546-560
Supplied with	1 upper bearing bracket, 1 basic fitting unit, 1 carousel shelf support, 1 set of fixing material, 1 set of installation instructions
Vendor item no.	541.46.411
