Metalla 310 Clip 110° for aluminium frame, full-overlay, soft-close, 28/6.9, nickel
Item code: L-HS31060
Item code copied!
Metalla 310 Clip 110° for aluminium frame, full-overlay, soft-close, 28/6.9, nickel
Item code: L-HS31060
Item code copied!
€2.17
pcs
(with VAT)
Item in stock.
Delivery time: 1-3 business days*
Metalla 310 series full overlay mounting hinge with soft closing mechanism and automatic closing spring for narrow aluminum frame doors.
Technical specifications:
- Aluminum profile width: 19-24mm
- Adjustment facility:
- Side adjustment: ±3 mm
- Height adjustment: ±2 mm (via mounting plate)
- Depth adjustment: ±2 mm
Installation:
- CLIP / SM quick fixing system - hinge arm is attached to mounting plate without tools.
- Hinge cup is inserted to drilled hole and screw fixed (screws are sold separately).
Sold separately:
Mounting plate Metalla 310.
Mounting plate Metalla 310.
Available additionally:
Cover cap for hinge arm Metalla 310/110.
Cover cap for hinge arm Metalla 310/110.
Data sheet
| Brand | Häfele |
|---|---|
| Opening angle, ° | 110 |
| Type of facade | External |
| Door material | Aluminum profile |
| Comfort functions opening/closing | Soft close, Self close |
| Material | zinc alloy/steel |
| Series | Metalla 310 |
| Colour | nickel |

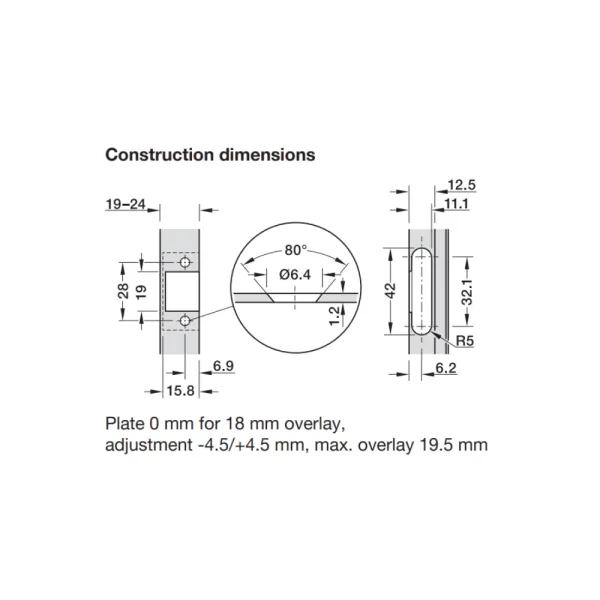

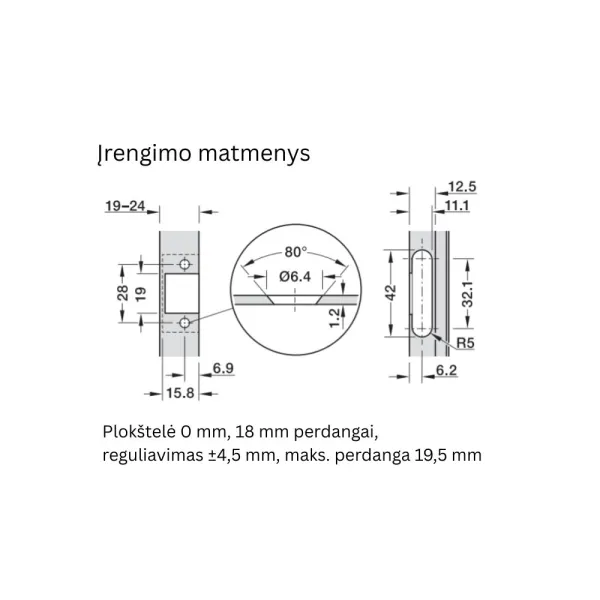

| Screw drilling dimensions, mm | 28/6.9 |
| Door thickness, mm | 15-24 |
| Vendor item no. | 311.61.540 |
| Installation | CLIP/SM quick fixing |
Product photos are for illustrative purposes only. The actual appearance, colors, configuration, dimensions, and other features of the products may differ from those shown in the images. For accurate information, please refer to the product descriptions, technical specifications, instructions, and provided links.
