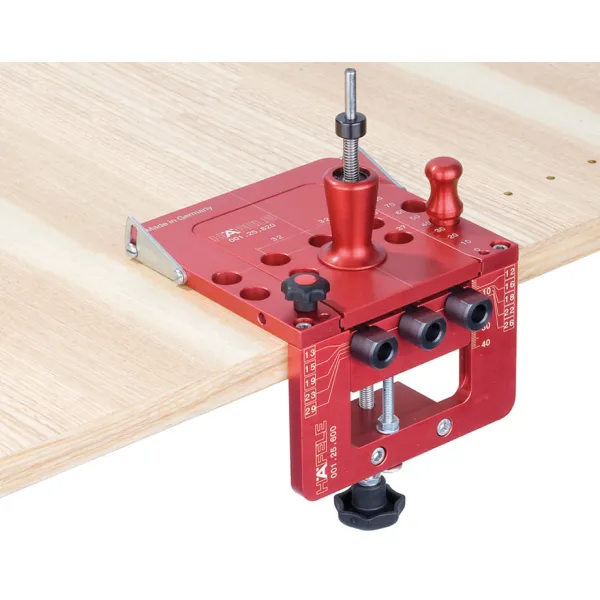

Drill guide set, Häfele Red Jig, for Ø35mm concealed hinges, drilling dim. 48/6
Item code: Y-REDJIG831
Item code copied!
Drill guide set, Häfele Red Jig, for Ø35mm concealed hinges, drilling dim. 48/6
Item code: Y-REDJIG831
Item code copied!
€393.75
set
(with VAT)
Item is not in stock and is available for special order only.
Delivery time: 7-15 business days*
Drilling template Ø35 mm for hinge mounting with depth limiter and cutter
Technical specifications:
- The base frame is required to use the drilling template
Sold separately:
- Base frame and SYS 32 Ø5 mm drilling template – Y-REDJIG980
or
- Base frame – Y-REDJIG/R
- Hinge drilling template Ø35 mm:
- suitable for Ø35 mm hole boring
- screw hole spacing 48/6
- Drilling templates for other hinge dimensions sold separately
Set includes:
- Hinge drilling template Ø35 mm, screw hole spacing 48/6
- Depth limiter 48 mm for Ø26–40 mm bits, with bit stop and return spring
- HM cutter Ø35 mm L130 mm, for use with 32 mm depth limiter
Data sheet
| Brand | Häfele |
|---|---|
| Series | Red Jig |
| Vendor item no. | 001.25.831 |
