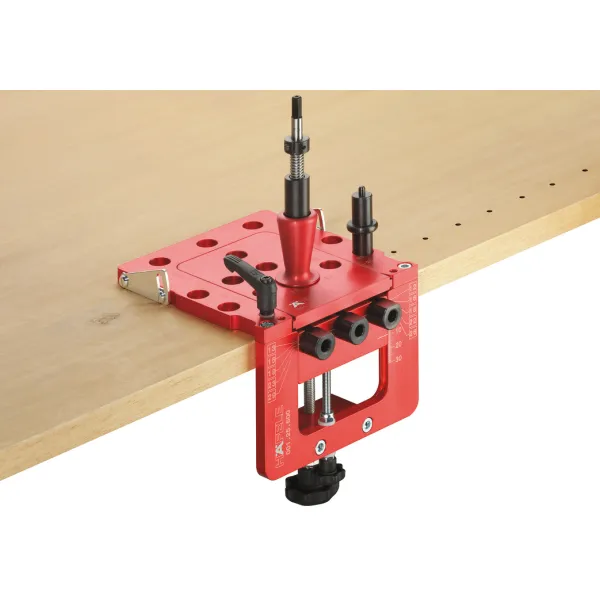

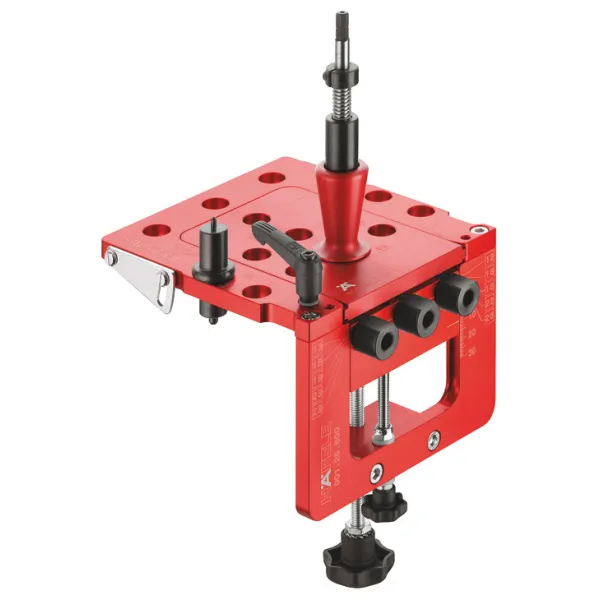

Drilling jig, Häfele Red Jig Basic set
Item code: Y-REDJIG890
Item code copied!
Drilling jig, Häfele Red Jig Basic set
Item code: Y-REDJIG890
Item code copied!
€708.62
set
(with VAT)
Item is not in stock and is available for special order only.
Delivery time: 7-15 business days*
Base frame and SYS 32 Ø5 mm drilling template with depth limiter and drill bit
Technical specifications:
- Red Jig – a new and universal drilling tool
- Suitable for mounting various joints and other HAFELE fittings
- SYS 32 Ø5 mm drilling template:
- suitable for Ø5 mm hole series drilling
- pitch 32 mm
- offset 37 and 69 mm
- The base frame is compatible with other RED JIG drilling templates
Set includes:
- RED JIG base frame with clamping plates and Ø8 mm bushings
- SYS 32 Ø5 mm drilling template, offset 37/69 mm
- 15 mm depth limiter for Ø3–10 mm bits, with bit stop and return spring
- HW wood drill bit Ø5 mm L130 mm, for use with 15 mm depth limiter
- Marking pin Ø3/5 mm
Data sheet
| Brand | Häfele |
|---|---|
| Series | Red Jig |
| Vendor item no. | 001.25.890 |
Product photos are for illustrative purposes only. The actual appearance, colors, configuration, dimensions, and other features of the products may differ from those shown in the images. For accurate information, please refer to the product descriptions, technical specifications, instructions, and provided links.
