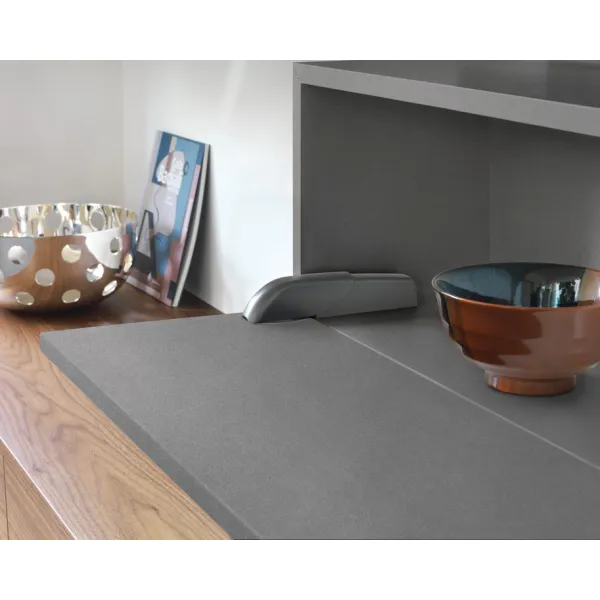

Flap stay
Item code: X36513701
Item code copied!
€141.98
set
(with VAT)
Item is not in stock and is available for special order only.
Delivery time: 7-15 business days*
Flap stay mechanism with soft opening and automatic closing functions
Technical specifications:
- Opening angle 90°
- Load 2.0–9.5 kg
- Door height 280–400 mm
- For doors wider than 900 mm additional central hinge L-A208 recommended
- Routing depth 13 mm
- Three-way (3D) adjustment
- Mechanism type selected according to door height and weight
PACTA technical data and routing diagrams (PDF)
PACTA installation and adjustment (video)
Sold separately:
- Set of covers
Set includes:
- Mechanism – 2 pcs
- Plate – 2 pcs
- Soft opening mechanism – 2 pcs
- Fixings
Data sheet
| Brand | Häfele |
|---|---|
| Material | zinc alloy |
| Diameter, mm | 35 |
| Colour | nickel |
| Load capacity, kg | B 3.3-6.6 |
| External module height, mm | 280-400 |
| Supplied with | 2 hinges, 2 mounting plates, 2 soft closing mechanisms, Accessories/mounting set |
| Vendor item no. | 365.13.701 |
