Concealed hinges AIR, with PUSH, titanium
Item code: L-S6XP/T
Item code copied!
€118.05
set
(with VAT)
Item in stock.
Delivery time: 1-3 business days*

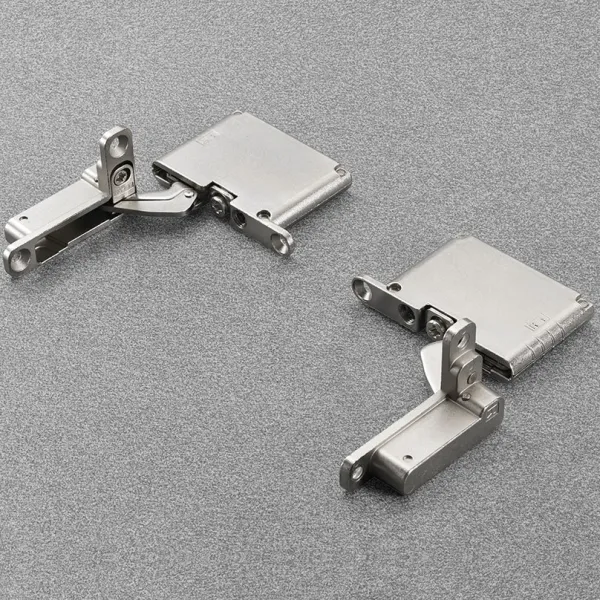

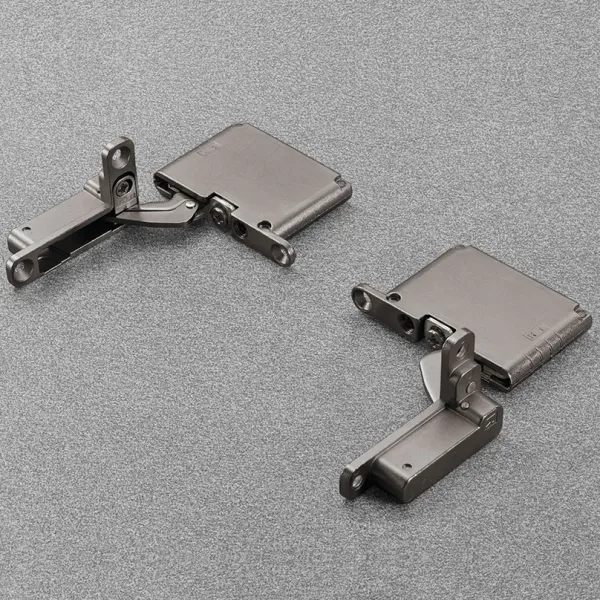

AIR series hinge with push-to-open mechanism
Technical specifications:
- Opening angle: 105°
- Designed for board or aluminium profile AIR doors with a thickness of 18–26 mm
- Recommended door weight: up to 20 kg
- Recommended door dimensions:
- Height – up to 2100 mm
- Width – up to 600 mm
- Mounted at the top and bottom edge of the door and cabinet
Sold separately:
- PUSH door catch
Additionally available:
- Opening angle limiter L-S6XR
Set includes:
- AIR push-to-open hinge – 2 pcs
Data sheet
| Brand | Salice |
|---|---|
| Opening angle, ° | 103 |
| Door material | board/aluminum profile |
| Comfort functions opening/closing | Push to open |
| Series | Air |
| Colour | titanium |
| Load capacity, kg | 16 |
| Door thickness, mm | 18-32 |
Product photos are for illustrative purposes only. The actual appearance, colors, configuration, dimensions, and other features of the products may differ from those shown in the images. For accurate information, please refer to the product descriptions, technical specifications, instructions, and provided links.
