Hinge KUBIKINA 6100, for wood thickness from 18mm, for concealed mounting, 180°, black
Item code: N-KUBIKINA61J
Item code copied!
Hinge KUBIKINA 6100, for wood thickness from 18mm, for concealed mounting, 180°, black
Hinge KUBIKINA 6100, for wood thickness from 18mm, for concealed mounting, 180°, black
Hinge KUBIKINA 6100, for wood thickness from 18mm, for concealed mounting, 180°, black
  • new New Arrival!
Hinge KUBIKINA 6100, for wood thickness from 18mm, for concealed mounting, 180°, black
Hinge KUBIKINA 6100, for wood thickness from 18mm, for concealed mounting, 180°, black
Hinge KUBIKINA 6100, for wood thickness from 18mm, for concealed mounting, 180°, black

Hinge KUBIKINA 6100, for wood thickness from 18mm, for concealed mounting, 180°, black

Item code: N-KUBIKINA61J
Item code copied!
€17.44
pcs (with VAT)
Item in stock.
Delivery time: 1-3 business days*
Door hinge, designed for thin interior and furniture doorsTechnical specifications:Concealed – fully integrated into the door or furniture frame  Universal – suitable for left...
Min. 1

Product variations

Similar products
Description

Door hinge, designed for thin interior and furniture doors

Technical specifications:

  • Concealed – fully integrated into the door or furniture frame
  • Universal – suitable for left- and right-handed doors

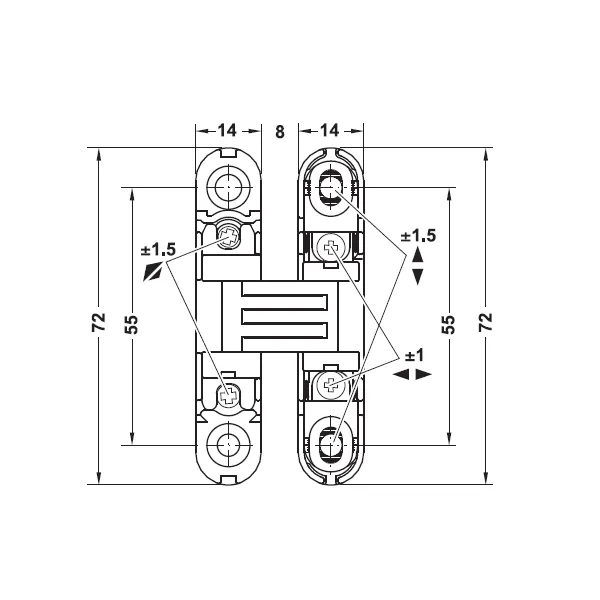

  • Simple three-way adjustment
  • Minimum distance between hinges – 500 mm
  • Maximum door width – 600 mm
  • Door weight:
    • 10.5 kg – with 2 hinges
    • 14 kg – with 3 hinges
    • 19 kg – with 4 hinges
IMPORTANT! – door height must not be less than the door width
Product Details

Data sheet

BrandKoblenz
Opening angle, ° 180
Material zinc alloy/plastic
Panel thickness, mm min 18
Colour white

Product photos are for illustrative purposes only. The actual appearance, colors, configuration, dimensions, and other features of the products may differ from those shown in the images. For accurate information, please refer to the product descriptions, technical specifications, instructions, and provided links.
