Support profiles for AIR hinge mounting to cabint, for recessed mounting, with hinge grooves, planel thickness 18mm, L630mm, aluminium
Item code: L-S6X/P18AL
Item code copied!
Support profiles for AIR hinge mounting to cabint, for recessed mounting, with hinge grooves, planel thickness 18mm, L630mm, aluminium
Item code: L-S6X/P18AL
Item code copied!
€85.34
pair
(with VAT)
Place the order as usual and we will contact you to confirm the shipping date.
Delivery time: 45 business days*
Support profile set for AIR concealed hinge mounting to cabinet. The profile set is designed for fast and precise cabinet mounting of AIR concealed hinges. The profiles feature pre-machined hinge grooves, eliminating the need for additional edge milling on the cabinet. The aluminium profile ensures stable and reliable support, even with heavier doors.
Technical specifications:

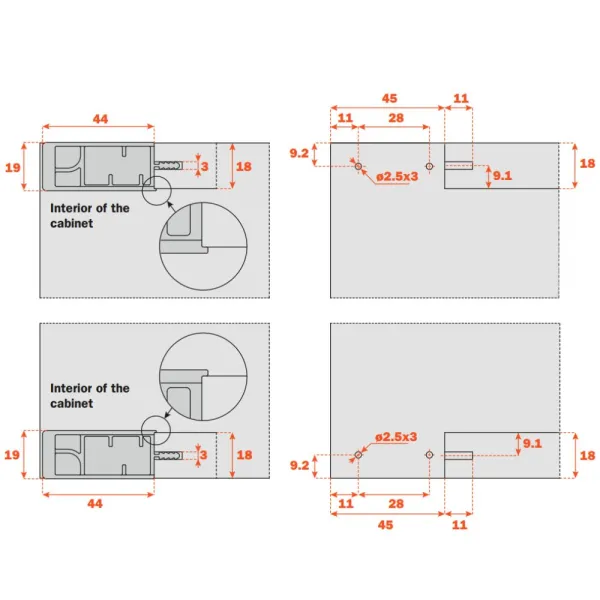

- For recessed mounting into the cabinet;
- Suitable for 18 mm thick top and bottom cabinet panels;
- When using this profiles, the top and bottom panels must be made shallower;
- Maximum internal cabinet width – 630 mm;
- The profiles can be cut to size – the cut must be made on the side opposite the hinge groove.
Set includes:
- 2 pcs – profiles for one AIR hinge set installation (top and bottom);
- 4 pcs – mounting plates with screws.
Data sheet
| Brand | Salice |
|---|---|
| Length, mm | 630 |
| Material | aluminium |
| Panel thickness, mm | 18 |
| Width, mm | 55 |
| Series | Air |
| Colour | aluminum anodized |
| Thickness, mm | 19 |
| Side | right+left |
