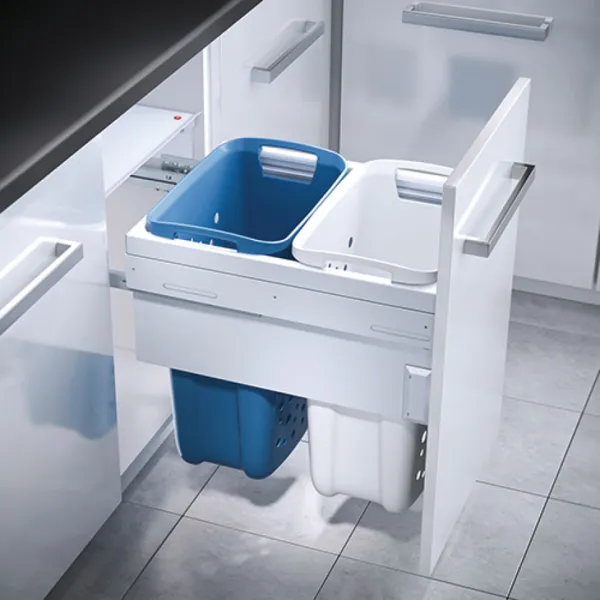

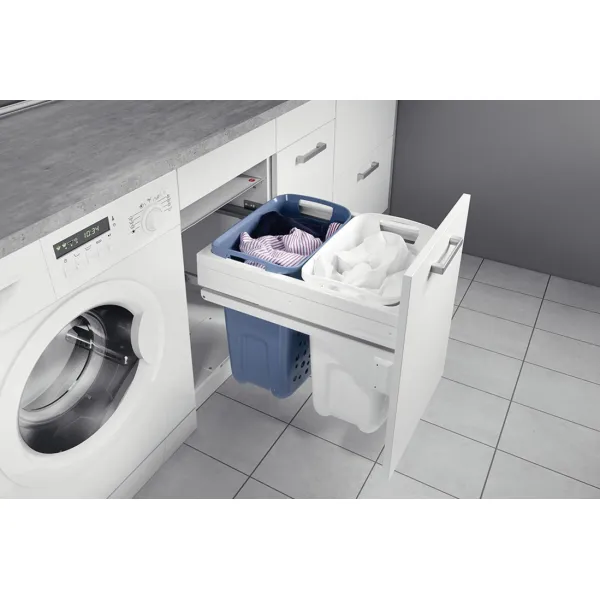

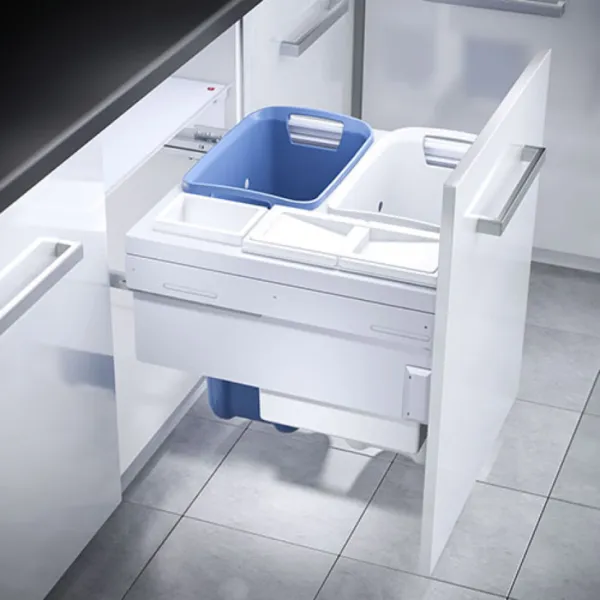

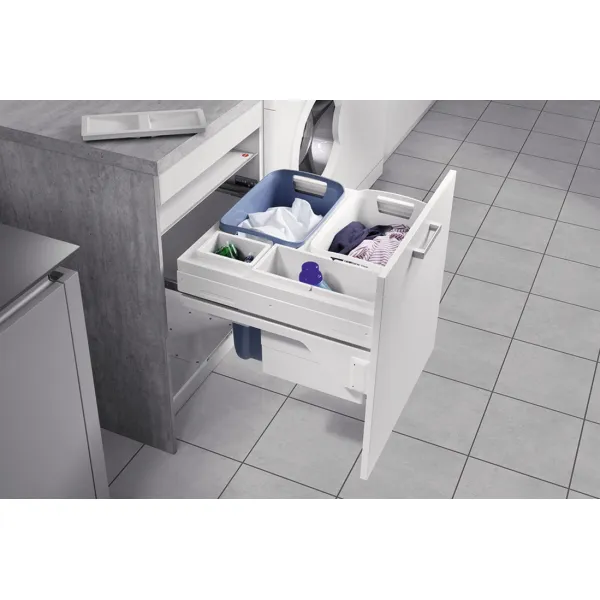

Multifunctional pull-out mechanism with laundry baskets
Technical specifications:
- Baskets are easily removable
- Capacity 80.5 L (2x33+12+2.5 L)
- Smaller buckets intended for storing laundry accessories and supplies
- Strong white steel frame with synchronized over-extension slides and integrated soft closing mechanism
- Metal lid serves as a shelf for laundry supplies
Mounting method:
- Slides are screwed to the cabinet carcass
- Drawer front is attached to the frame
Recommended cabinet dimensions:
- External module width 600 mm
- Internal module depth min. 530 mm
- Internal module height min. 545 mm
Set includes:
- Steel frame with synchronized over-extension slides with integrated soft closing mechanism
- Plastic 33 L basket, white
- Plastic 33 L basket, blue
- Plastic 12 L bucket with lid
- Plastic 2.5 L tray
- Steel lid – shelf

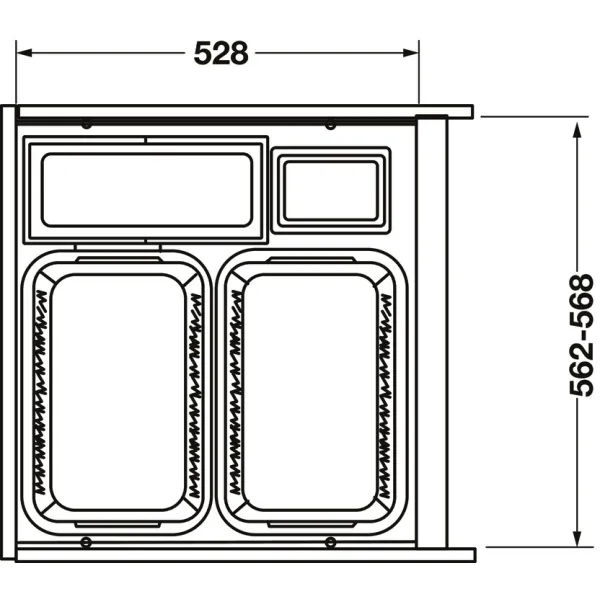

Data sheet
| Brand | Häfele |
|---|---|
| Height, mm | 545 |
| Depth, mm | 528 |
| Material | Steel/Plastic |
| Width, mm | 562-568 |
| Colour | white/blue |
| Load capacity, kg | 50 |
| External module width, mm | 600 |
| Vendor item no. | 502.72.724 |
