Sliding door fitting, Slido D-Line43 80N, frame door for glass and wooden panel
Item code: X94059019
Item code copied!
Sliding door fitting, Slido D-Line43 80N, frame door for glass and wooden panel
Item code: X94059019
Item code copied!
€1,062.88
set
(with VAT)
Item is not in stock and is available for special order only.
Delivery time: 7-15 business days*
Sliding door system, designed for single doors made of glass or 8 mm panel
Technical specifications:
- The system’s running gear and track are concealed
- Aluminium frame is included with the system
- Frame profiles can be cut to the required dimensions
- Maximum door weight: 80 kg
- Integrated soft-closing and self-closing mechanism
- Built-in anti-derailment protection
- Side mounting to the wall, with the upper running track integrated into the aluminium frame
- Distance to wall: 4 mm
- Recommended material thickness:
- Panel: 8 mm
- Tempered glass: 5, 6, or 8 mm
- Laminated glass: 6–8.7 mm

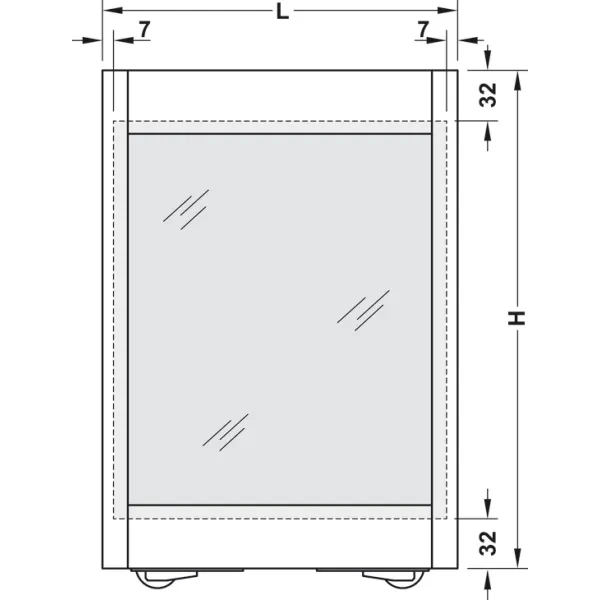

- Recommended panel dimensions: width 800–1500 mm; height up to 2600 mm
- Door height adjustment: ±2 mm

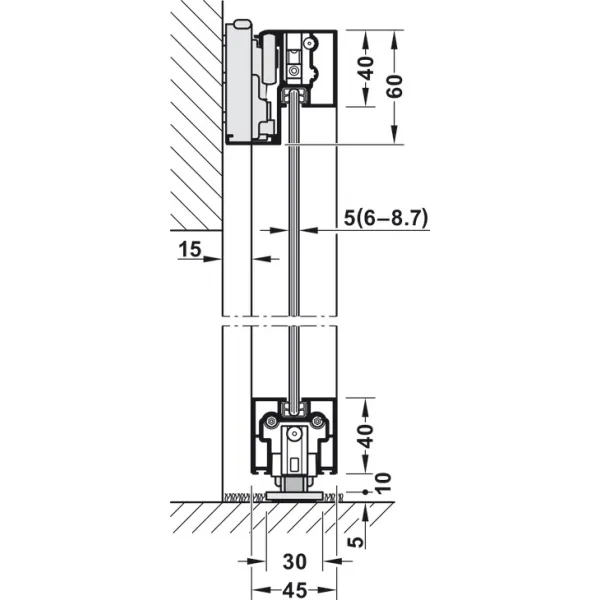

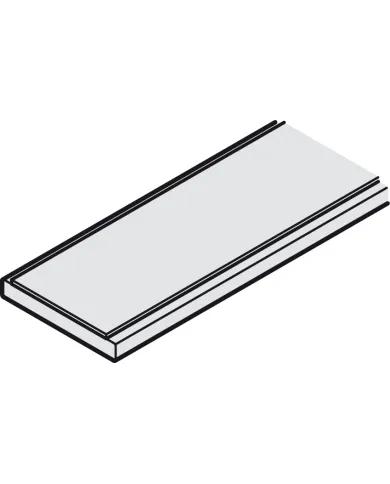

- Bottom track required for soft floor surfaces (e.g. carpet)
- One set is intended for one door
Set contents:
- Aluminium frame profiles and fixings – 1 set
- Seals for glass/panel – 1 set
- Upper running track – 1 pc.
- Running gear – 1 pc.
- Soft-closing and self-closing mechanism – 2 pcs.
- Guide – 1 pc.
- Height adjuster – 1 pc.
- Guide rollers – 1 set
- End caps – 2 sets (black and matt chrome finish)
- Seals – 2 pcs.
- Floor stopper – 1 pc. (optional use)
- Allen key – 2 pcs.
- Spanner – 1 pc.
Data sheet
| Brand | Häfele |
|---|---|
| Length, mm | 1500 |
| Colour | black |
| Load capacity, kg | 80 |
| Vendor item no. | 940.59.019 |
Product photos are for illustrative purposes only. The actual appearance, colors, configuration, dimensions, and other features of the products may differ from those shown in the images. For accurate information, please refer to the product descriptions, technical specifications, instructions, and provided links.
