Häfele

Wooden pivot sliding doors, Hawa Concepta 30, set

Item code: X40830591
Item code copied!
€1,314.42
set (with VAT)
Item is not in stock and is available for special order only.
Delivery time: 7-15 business days*
System for hinged and retractable external (VF) or internal (IF) panel doors Technical specifications:The system operates quietly and smoothly — once pushed, the door automatically...
Min. 1
favorite_border

Product variations

Height, mm
Width, mm
Load capacity, kg
Description
System for hinged and retractable external (VF) or internal (IF) panel doors

Technical specifications:
  • The system operates quietly and smoothly — once pushed, the door automatically slides into the pocket
  • Equipped with soft-close mechanism
  • Universal system — suitable for left or right-side installation
  • One set per door segment
  • LGA-certified product
  • Model: door segment weight / height / width:
    • 25: 10–25 kg / 1250–1850 mm / 300–750 mm
    • 30: 15–30 kg / 1851–2300 mm / 300–900 mm
    • 40: 20–40 kg / 1851–2500 mm / 300–900 mm
    • 50: 25–50 kg / 2301–2850 mm / 300–900 mm

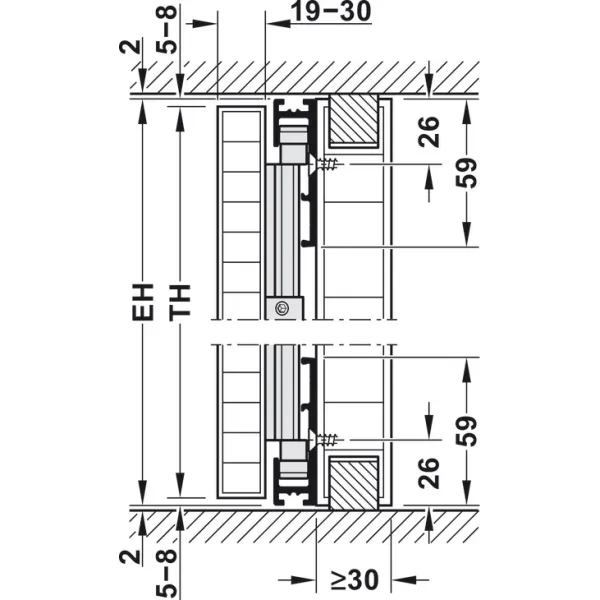

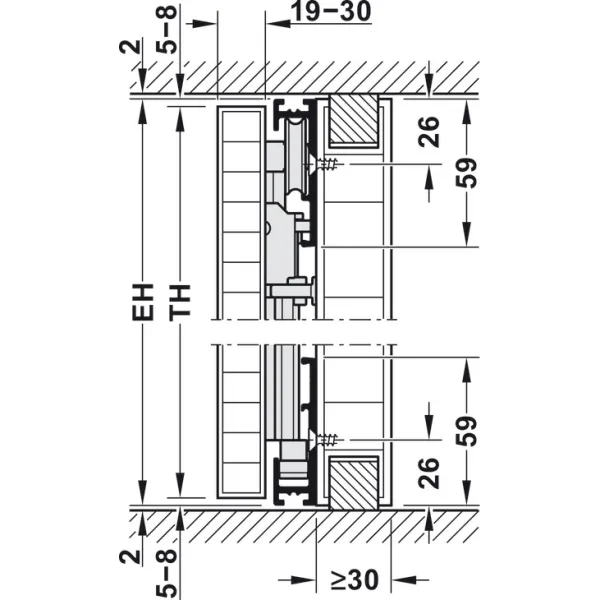

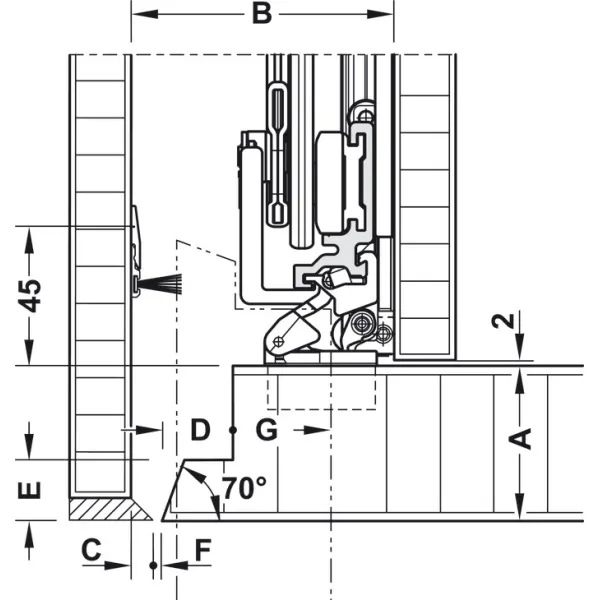

  • Door thickness: from 19 to 30 mm; with grooving (D) — up to 50 mm
Accessories to be ordered together (p.10.213) depend on the mounting type:

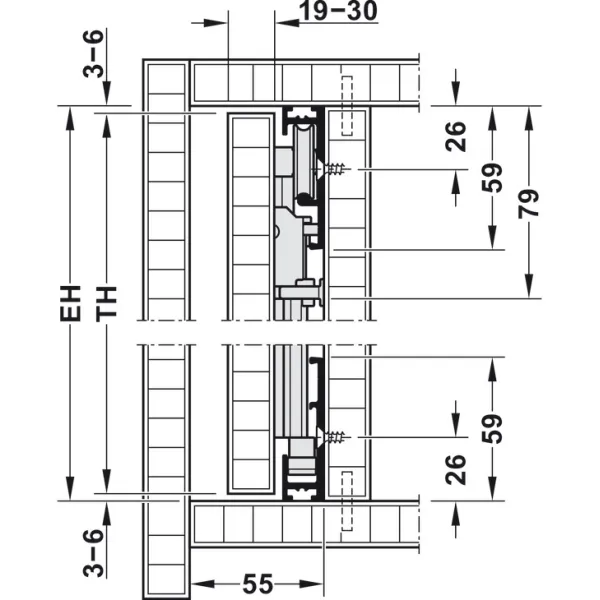

  • Between two cabinet bodies for external fronts (p.10.209–10.210)
  • Between two cabinet bodies for internal fronts (p.10.211)

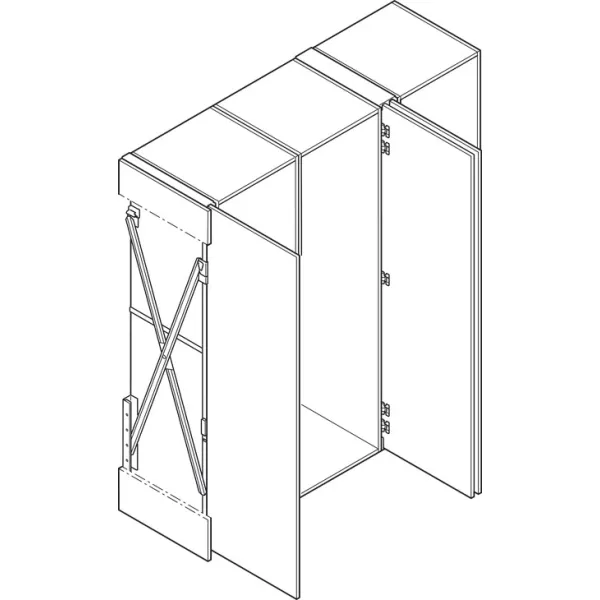

  • Between wall and cabinet body (for external and internal fronts) (p.10.212)

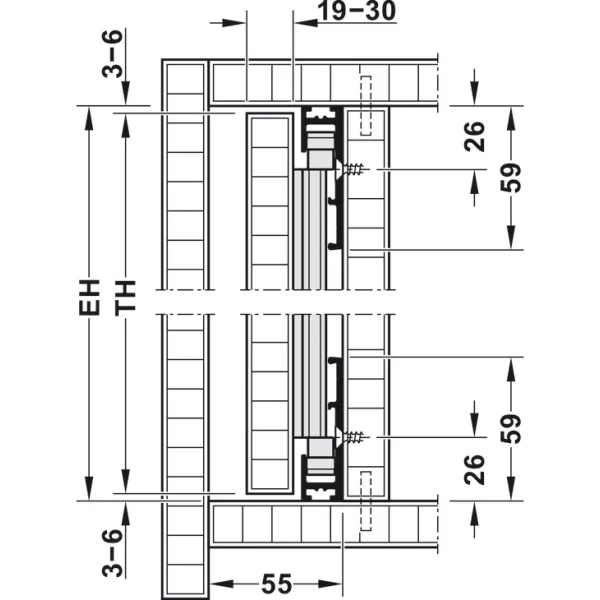

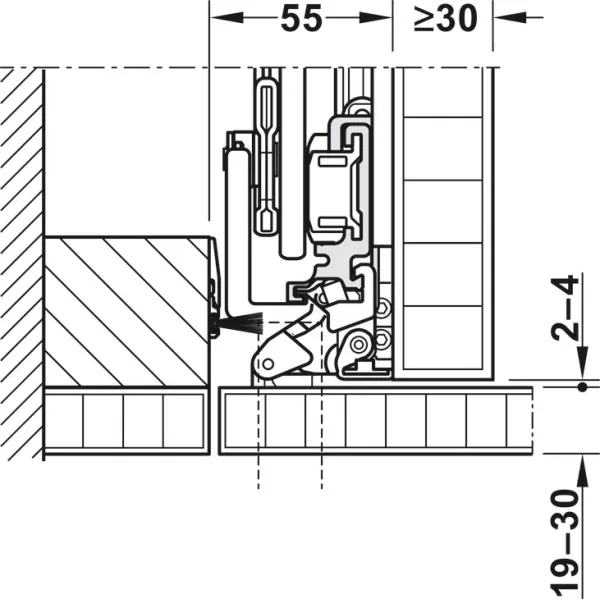

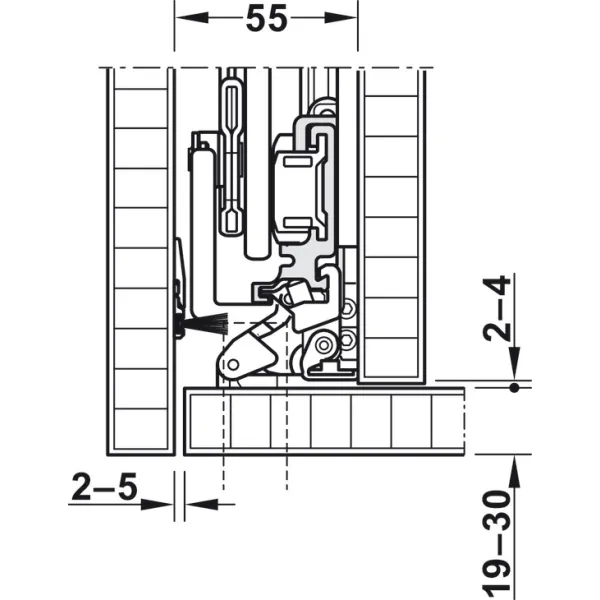

Pocket internal width:
  • For one door segment: 55 mm

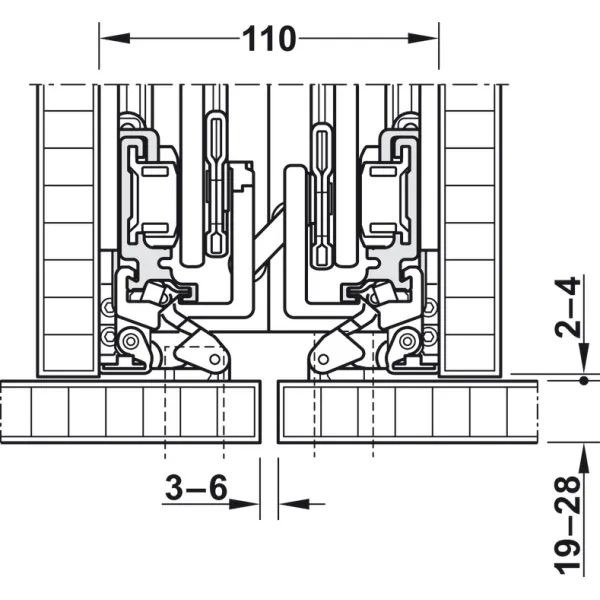

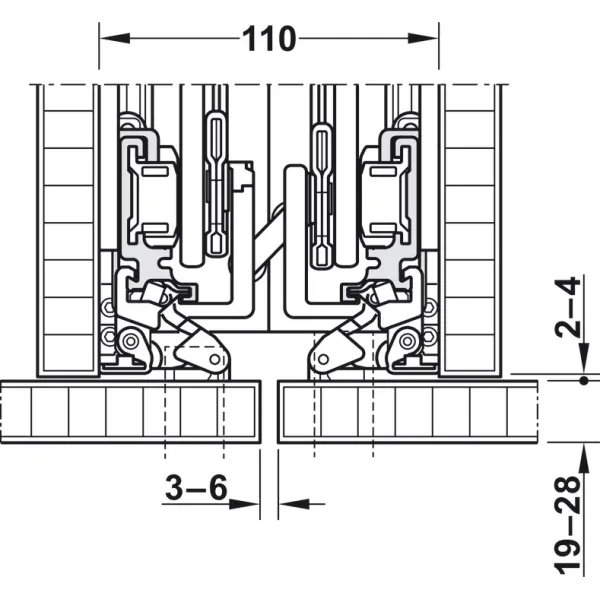

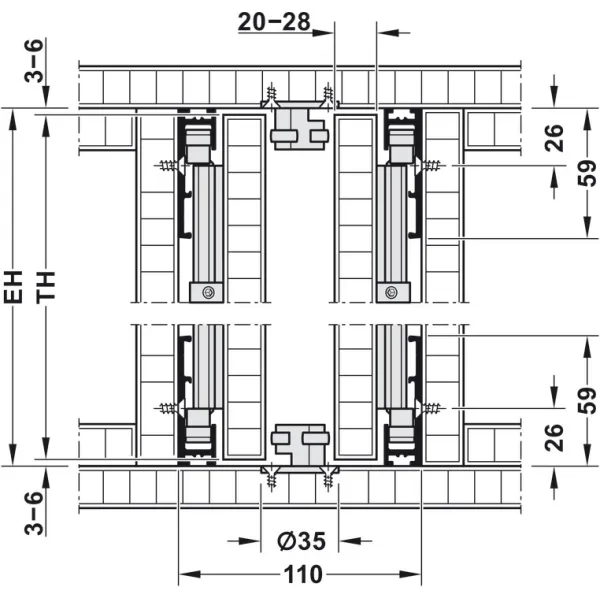

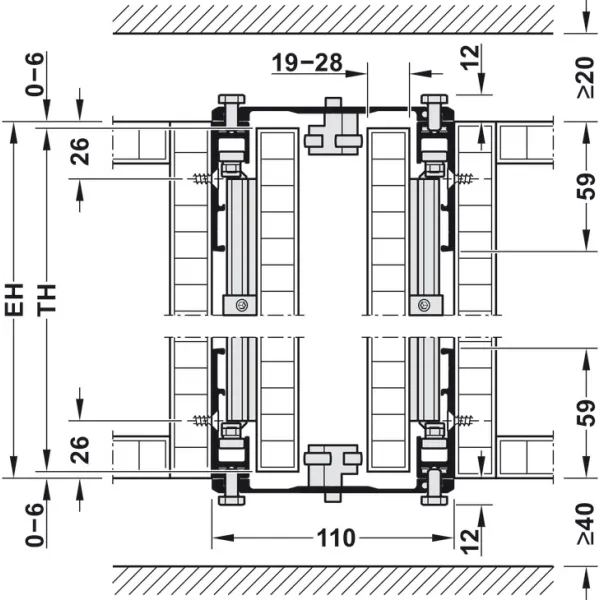

  • For two door segments: 110 mm
Convenient front-side adjustment

Installation Hawa Concepta 40/50 (video)
Product Details

Data sheet

BrandHäfele
Height, mm 1851-2300
Width, mm 300-900
Load capacity, kg 15-30
Vendor item no. 408.30.591

Product photos are for illustrative purposes only. The actual appearance, colors, configuration, dimensions, and other features of the products may differ from those shown in the images. For accurate information, please refer to the product descriptions, technical specifications, instructions, and provided links.

info Report an error

Recommended to purchase

Connector profile, For 1 pivot sliding door
  • on-order Pre-order
favorite_border
Connector profile, For 1 pivot sliding door
SKU: X40830092
€117.71 /pcs (with VAT)
Special order
Delivery time: 7-15 business days*
Connector profile, For 2 pivot sliding doors
  • on-order Pre-order
favorite_border
Connector profile, For 2 pivot sliding doors
SKU: X40830093
€225.25 /pcs (with VAT)
Special order
Delivery time: 7-15 business days*
Connector profile, For 2 pivot sliding doors
  • on-order Pre-order
favorite_border
Connector profile, For 2 pivot sliding doors
SKU: X40830094
€256.77 /pcs (with VAT)
Special order
Delivery time: 7-15 business days*

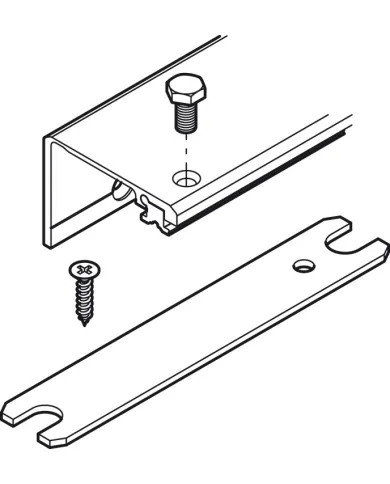

Connector profile, 2-piece set, for 1 pivot sliding door
