Häfele

Wooden pivot sliding doors, Hawa Concepta 50, set

Item code: X40830593
Item code copied!
€1,839.91
set (with VAT)
Item is not in stock and is available for special order only.
Delivery time: 7-15 business days*
System for hinged and retractable external (VF) or internal (IF) panel doors Technical specifications:The system operates quietly and smoothly — once pushed, the door automatically...
Min. 1
favorite_border

Product variations

Height, mm
Width, mm
Load capacity, kg
Description
System for hinged and retractable external (VF) or internal (IF) panel doors

Technical specifications:
  • The system operates quietly and smoothly — once pushed, the door automatically slides into the pocket
  • Equipped with soft-close mechanism
  • Universal system — suitable for left or right-side installation
  • One set per door segment
  • LGA-certified product
  • Model: door segment weight / height / width:
    • 25: 10–25 kg / 1250–1850 mm / 300–750 mm
    • 30: 15–30 kg / 1851–2300 mm / 300–900 mm
    • 40: 20–40 kg / 1851–2500 mm / 300–900 mm
    • 50: 25–50 kg / 2301–2850 mm / 300–900 mm
  • Door thickness: from 19 to 30 mm; with grooving (D) — up to 50 mm
Accessories to be ordered together (p.10.213) depend on the mounting type:

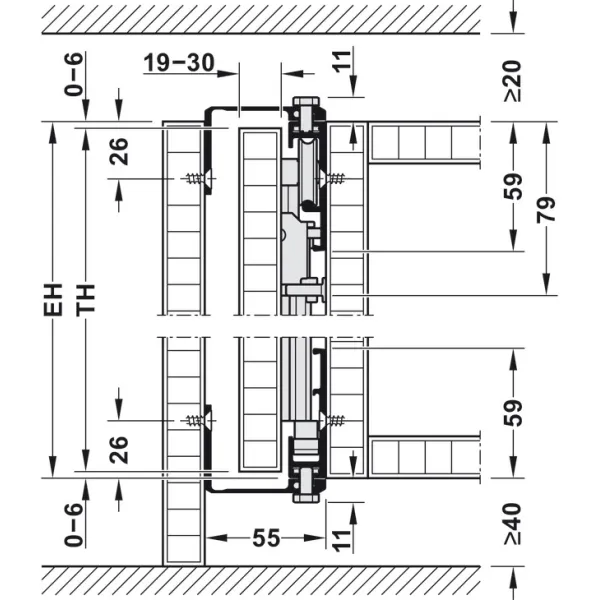

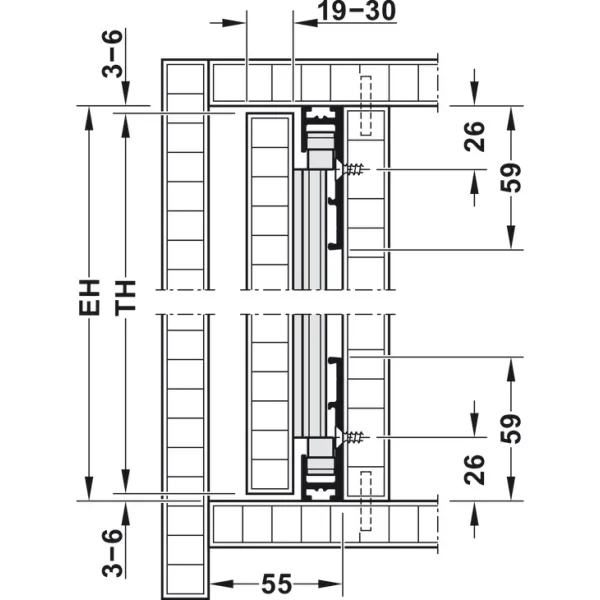

  • Between two cabinet bodies for external fronts (p.10.209–10.210)

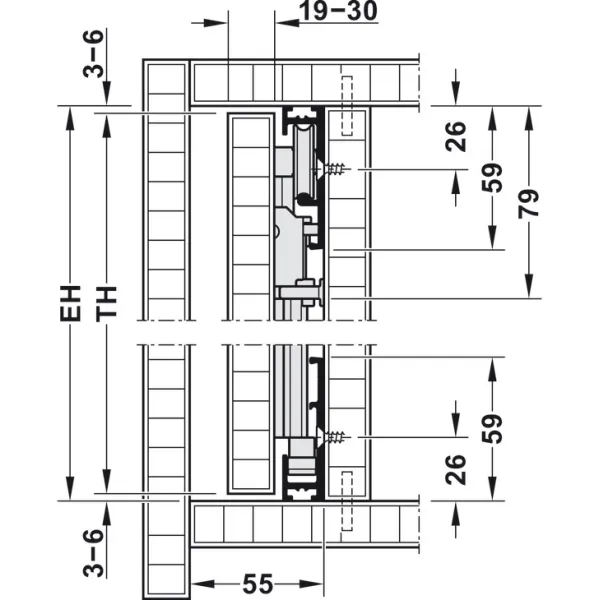

  • Between two cabinet bodies for internal fronts (p.10.211)

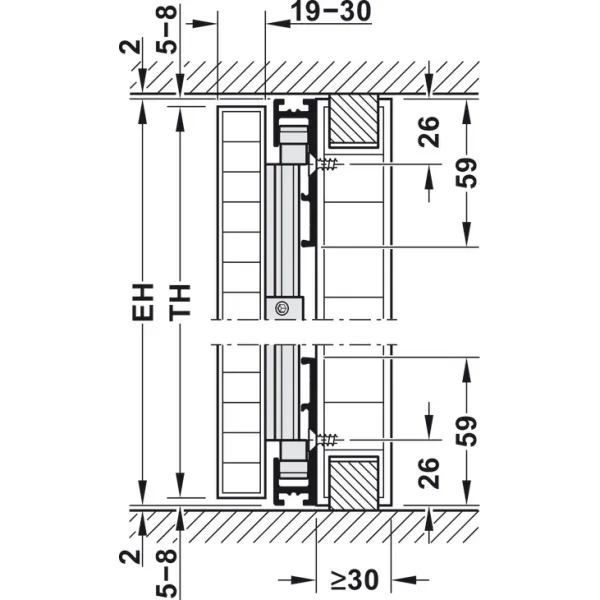

  • Between wall and cabinet body (for external and internal fronts) (p.10.212)

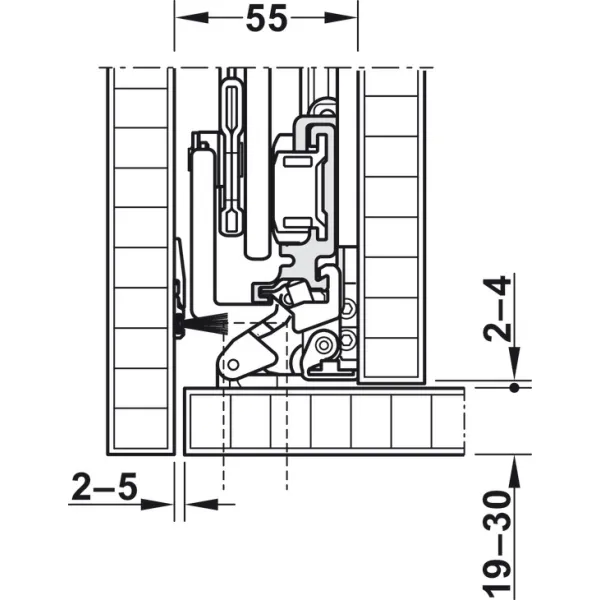

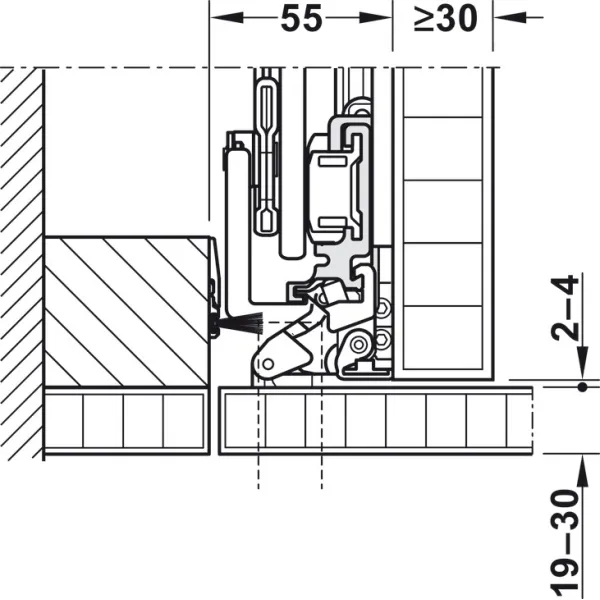

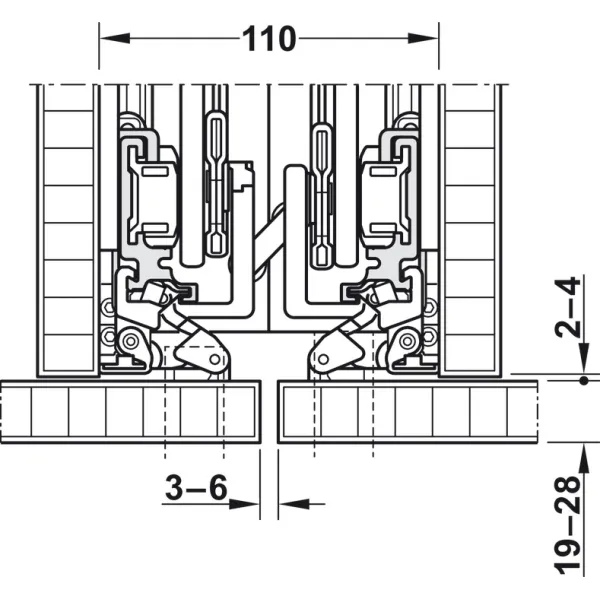

Pocket internal width:

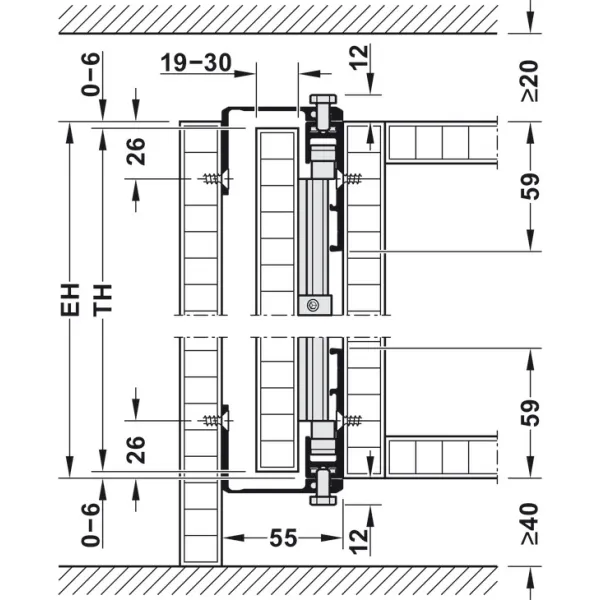

  • For one door segment: 55 mm

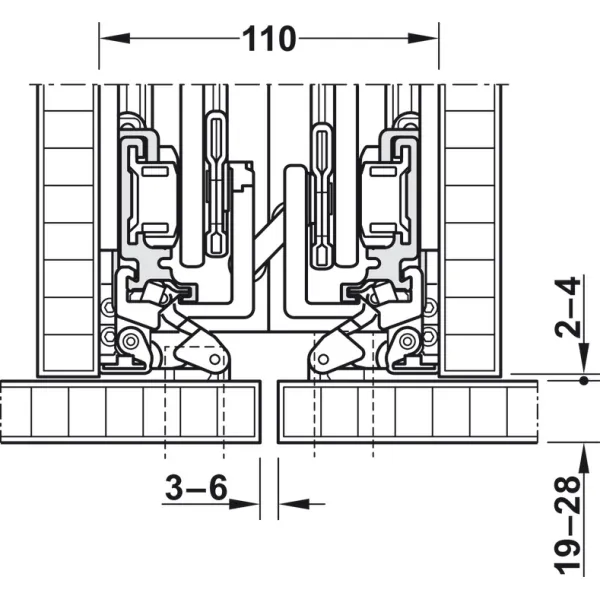

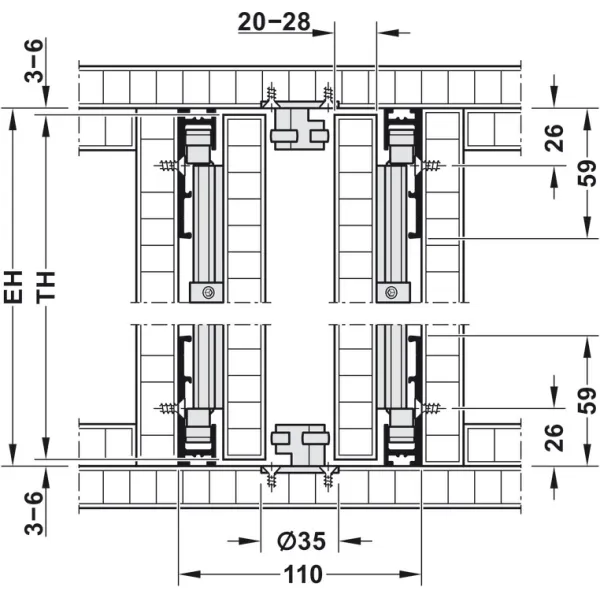

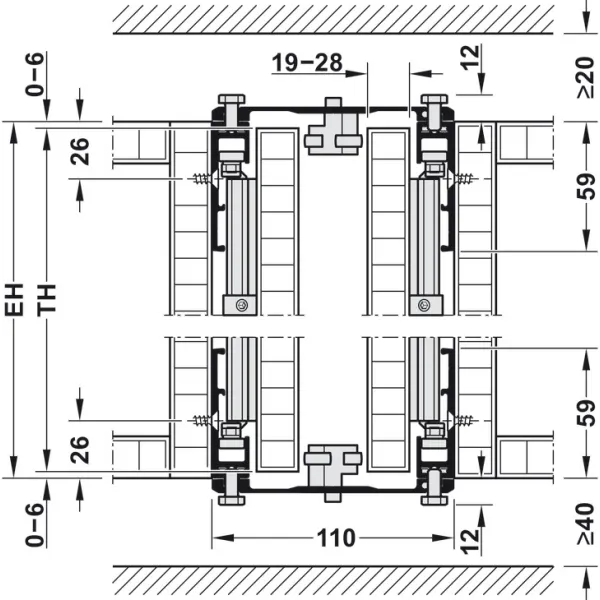

  • For two door segments: 110 mm
Convenient front-side adjustment

Installation Hawa Concepta 40/50 (video)
Product Details

Data sheet

BrandHäfele
Height, mm 2301-2850
Width, mm 300-900
Load capacity, kg 25-50
Vendor item no. 408.30.593
