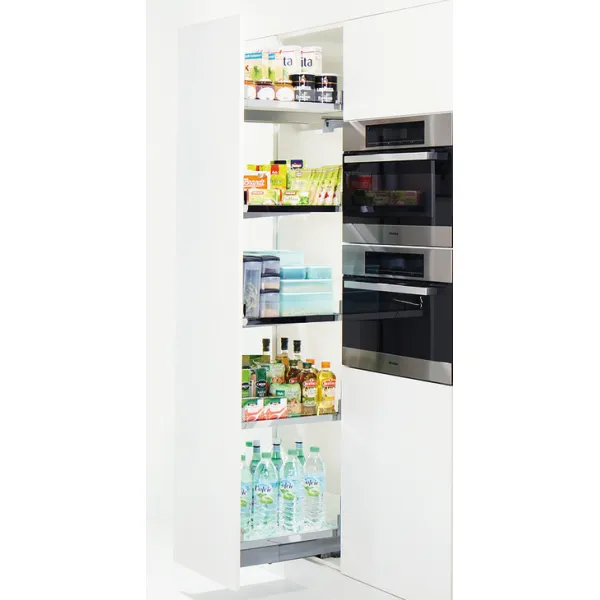

Pull-out fitting, Kesseböhmer Convoy Centro Door front fixing pull out larder unit

Item code: V-CONVOY/R1900

Pre-order

Click to enlarge

Pull-out fitting, Kesseböhmer Convoy Centro Door front fixing pull out larder unit

Name: Pull-out fitting, Kesseböhmer Convoy Centro Door front fixing pull out larder unit
Brand: Häfele
SKU: V-CONVOY/R1900
Price: 1024.47 EUR
Availability: PreOrder

Item code: V-CONVOY/R1900

€1,024.47

set (with VAT)

Item is not in stock and is available for special order only.

Delivery time: 7-15 business days*

Pull-out utility cabinet with soft closing functionTechnical specifications:Fully extends out of the cabinetFrameless shelf design allows easy access to stored itemsRobust frame su...

Min. 1

set

favorite_border

Product variations

External module height, mm

Description
Product Details

Description

Pull-out utility cabinet with soft closing function

Technical specifications:

Fully extends out of the cabinet
Frameless shelf design allows easy access to stored items
Robust frame supports up to 100 kg (up to 20 kg per shelf)
Integrated soft closing mechanism
Easy height adjustment of baskets
Basket bottom with non-slip surface and adjustable glass uprights

Material:

Frame brackets, slide mechanism and basket frames - steel
Basket bottoms - MDF, uprights - glass

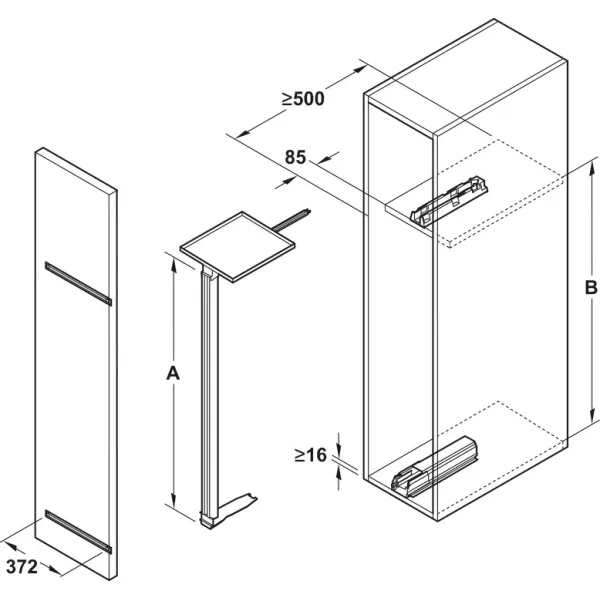

*Note: the dimension table indicates external cabinet module width and internal height and depth

CONVOY CENTRO installation (video)

Sold separately:

Baskets with glass uprights – recommended 4 pcs

Additionally available:

Front stabilizer

Set includes:

Base frame with front mounting brackets – 1 pc
Slide mechanism – 1 pc
Brackets – 2 pcs
Top basket with glass uprights and integrated top slide – 1 pc

Product Details

Data sheet

Brand	Häfele
Material	steel
Colour	chrome/white
External module width, mm	450
External module depth, mm	≥500
External module height, mm	1900-2000
Supplied with	1 base profile with front fixing, 1 extension fitting, 1 top runner with shelf with glass height side panels, 2 front brackets (top and bottom)
Vendor item no.	545.81.984
