Larder unit pull-out, Kesseböhmer Dispensa
Item code: V-DISP30/1900P
Item code copied!
Larder unit pull-out, Kesseböhmer Dispensa
Item code: V-DISP30/1900P
Item code copied!
€475.18
set
(with VAT)
Item is not in stock and is available for special order only.
Delivery time: 7-15 business days*
Pull-out utility cabinet with soft closing function
Technical specifications:
- Fully extends out of cabinet
- Robust frame supports high load up to 100 kg
- Integrated soft closing mechanism

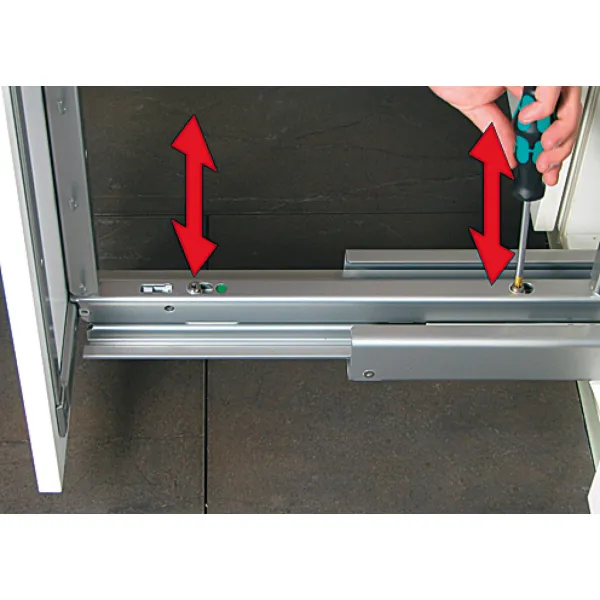

- Easy basket height adjustment
*Note: the dimension table indicates external cabinet module width and internal height and depth

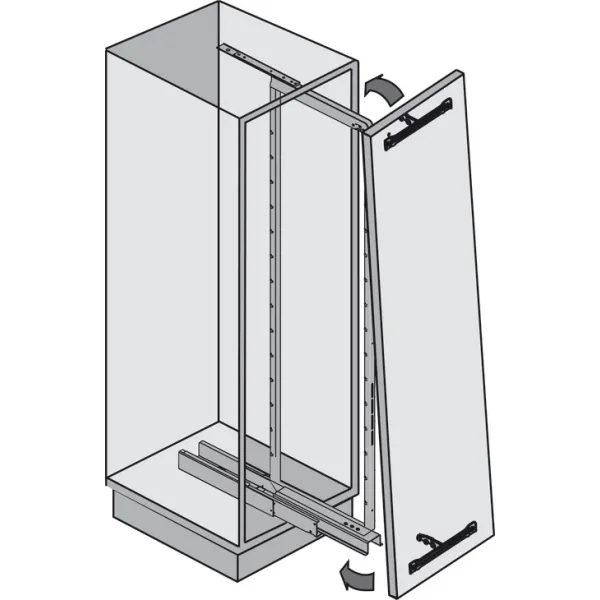

DISPENSA VSS-x installation (PDF)
Sold separately:
- Baskets V-DISP/K
Recommended quantity of baskets to order:
- 4–6 pcs for 1200–1600 mm high frame
- 6–8 pcs for 1600–2000 mm high frame
- 7–9 pcs for 1900–2300 mm high frame
Additionally available:
- Electric opening mechanism TouchControl M-HTOUCH
Set includes:
- Frame with integrated soft closing mechanism
- Bottom slide with integrated soft closing mechanism
- Top slide
- Front mounting brackets

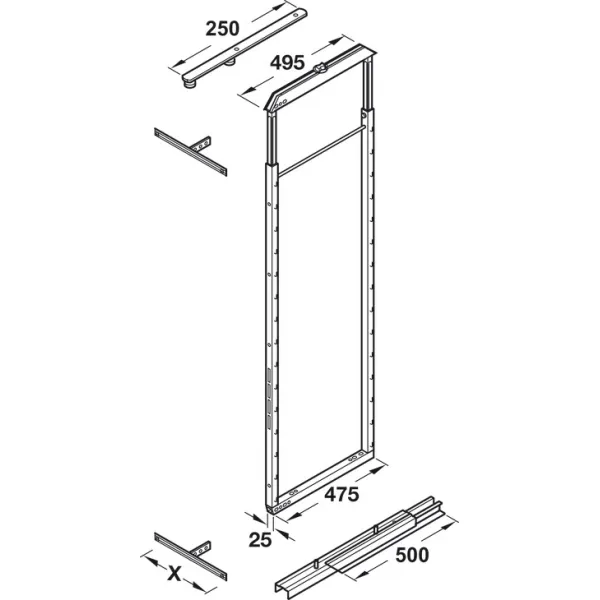

Data sheet
| Brand | Häfele |
|---|---|
| Material | steel |
| Colour | grey |
| External module width, mm | 300 |
| External module depth, mm | ≥500 |
| External module height, mm | 1900-2300 |
| Supplied with | 1 hanging frame with integrated soft closing mechanism, 1 bottom runner with integrated soft closing mechanism, 1 top runner, 1 set of front brackets, 1 set of installation instructions |
| Vendor item no. | 546.59.931 |
Product photos are for illustrative purposes only. The actual appearance, colors, configuration, dimensions, and other features of the products may differ from those shown in the images. For accurate information, please refer to the product descriptions, technical specifications, instructions, and provided links.
