Larder unit pull-out, Kesseböhmer Dispensa
Item code: V-DISP60/1200P
Item code copied!
Larder unit pull-out, Kesseböhmer Dispensa
Larder unit pull-out, Kesseböhmer Dispensa
Larder unit pull-out, Kesseböhmer Dispensa
Larder unit pull-out, Kesseböhmer Dispensa
Larder unit pull-out, Kesseböhmer Dispensa
Larder unit pull-out, Kesseböhmer Dispensa
Larder unit pull-out, Kesseböhmer Dispensa
Larder unit pull-out, Kesseböhmer Dispensa

Larder unit pull-out, Kesseböhmer Dispensa

Item code: V-DISP60/1200P
Item code copied!
€448.62
set (with VAT)
Item is not in stock and is available for special order only.
Delivery time: 7-15 business days*
Pull-out utility cabinet with soft closing functionTechnical specifications:Fully extends out of cabinetRobust frame supports high load up to 100 kgIntegrated soft closing mechanis...
Min. 1

Product variations

Colour
External module width, mm
External module height, mm
Description

Pull-out utility cabinet with soft closing function

Technical specifications:

  • Fully extends out of cabinet
  • Robust frame supports high load up to 100 kg
  • Integrated soft closing mechanism

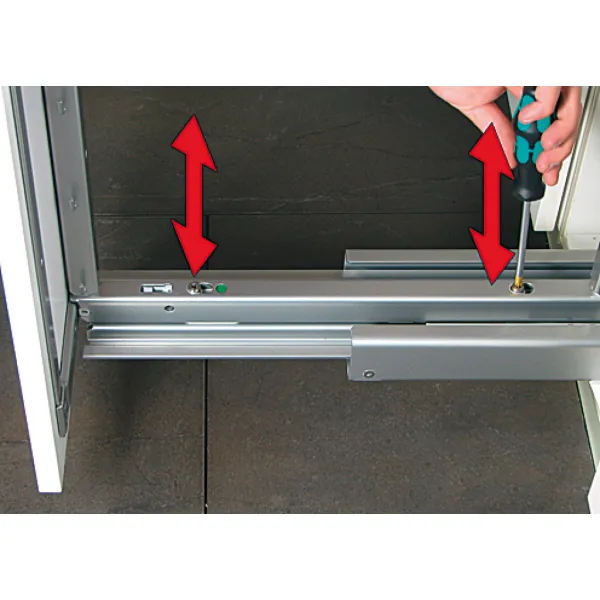

  • Easy basket height adjustment

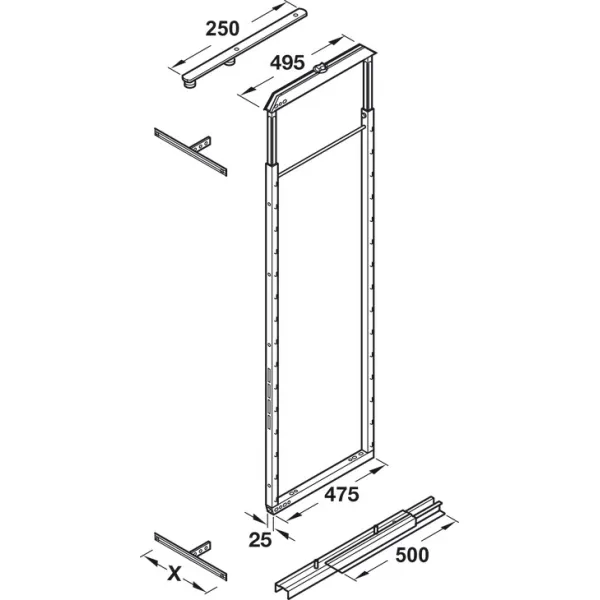

*Note: the dimension table indicates external cabinet module width and internal height and depth

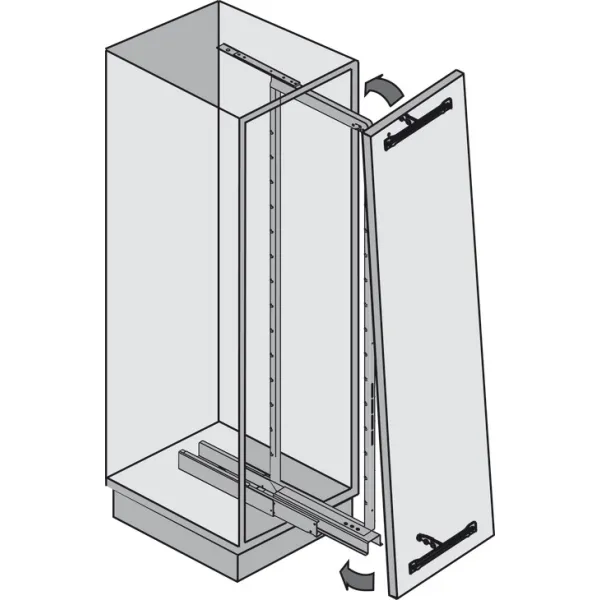

DISPENSA VSS-x installation (PDF)

Sold separately:

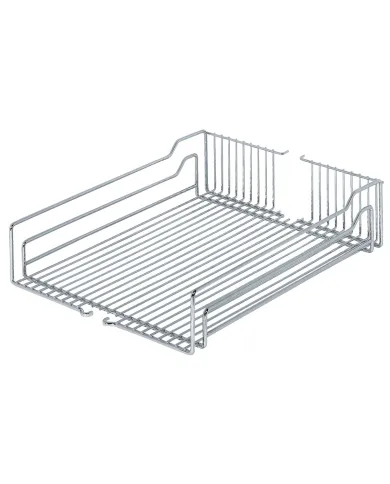

  • Baskets V-DISP/K

Recommended quantity of baskets to order:

  • 4–6 pcs for 1200–1600 mm high frame
  • 6–8 pcs for 1600–2000 mm high frame
  • 7–9 pcs for 1900–2300 mm high frame

Additionally available:

  • Electric opening mechanism TouchControl M-HTOUCH

Set includes:

  • Frame with integrated soft closing mechanism
  • Bottom slide with integrated soft closing mechanism
  • Top slide
  • Front mounting brackets

Product Details

Data sheet

BrandHäfele
Material steel
Colour grey
External module width, mm 600
External module depth, mm ≥500
External module height, mm 1200-1600
Supplied with 1 hanging frame with integrated soft closing mechanism, 1 bottom runner with integrated soft closing mechanism, 1 top runner, 1 set of front brackets, 1 set of installation instructions
Vendor item no. 546.59.917

Product photos are for illustrative purposes only. The actual appearance, colors, configuration, dimensions, and other features of the products may differ from those shown in the images. For accurate information, please refer to the product descriptions, technical specifications, instructions, and provided links.
