Lid stay/flap stay, Duo forte, individual component

Name: Lid stay/flap stay, Duo forte, individual component
Brand: Häfele
SKU: M-DUO/FNI-1
Price: 15.15 EUR
Availability: InStock

Item code: M-DUO/FNI-1

€15.15

pcs (with VAT)

Item in stock.

Delivery time: 1-3 business days*

Universal mechanism for lifting or lowering cabinet doors Technical specifications:Recommended for doors with a height of 250–700 mm: When door weight is 2–9 kg, u...

Min. 1

pcs

favorite_border

Description
Product Details

Description

Universal mechanism for lifting or lowering cabinet doors

Technical specifications:

Recommended for doors with a height of 250–700 mm:
- When door weight is 2–9 kg, use 1 mechanism
- When door weight is 5–15 kg, use 2 mechanisms

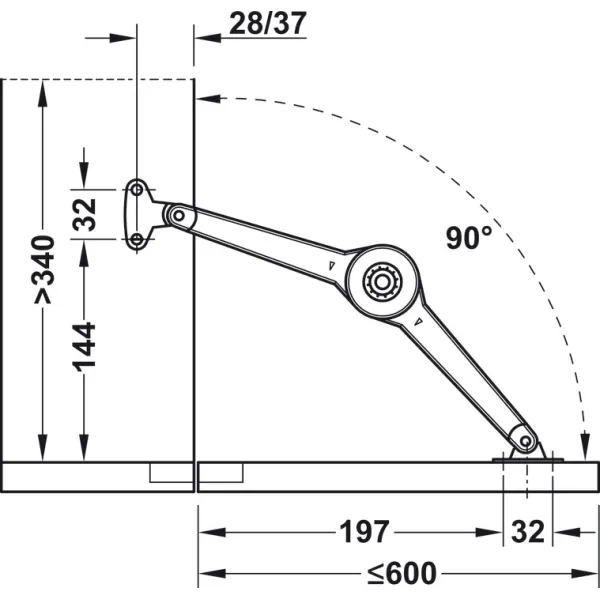

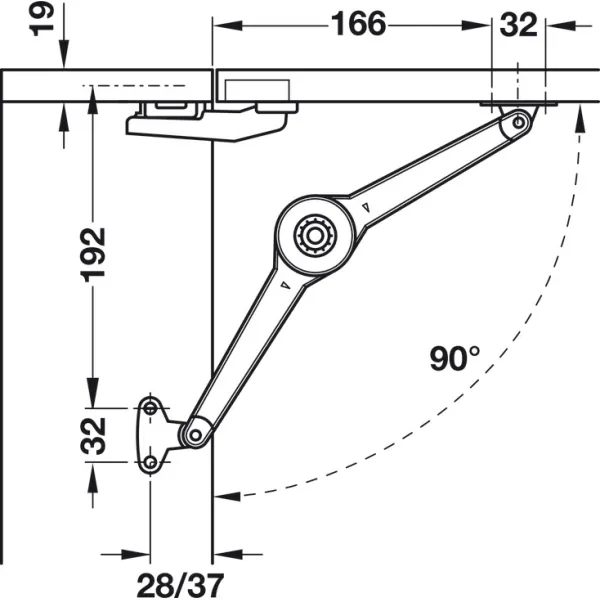

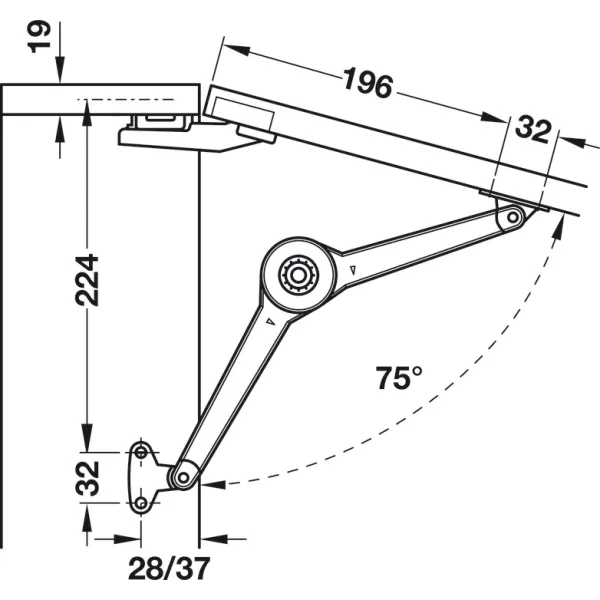

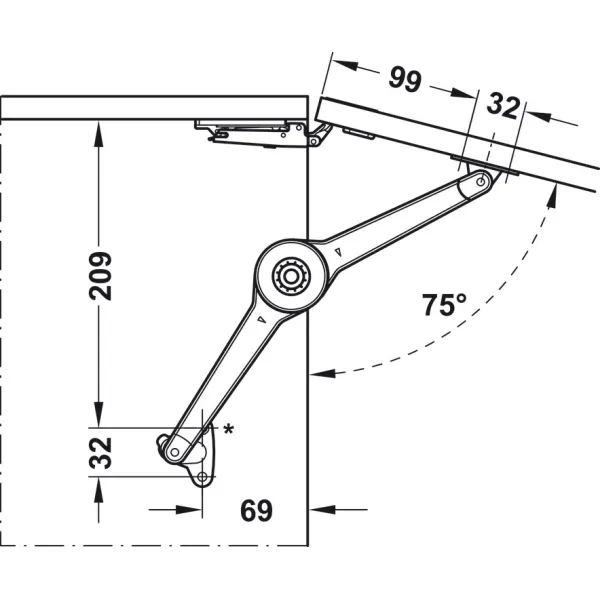

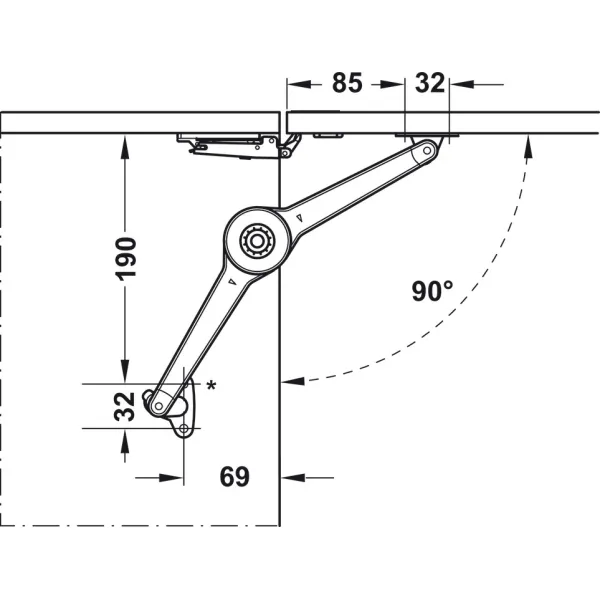

75°/90°/110° opening angle depending on mounting method
For downward-opening doors, a magnet is recommended for secure closure

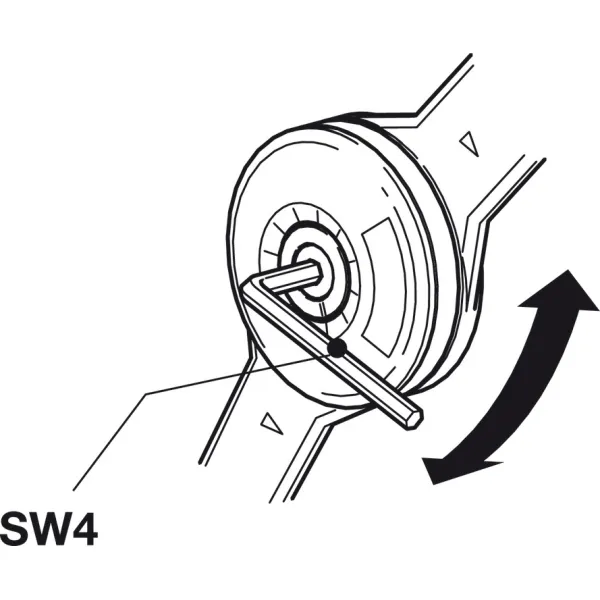

Lifting/lowering force adjustable via hex screw SW4

Sold separately:

Mounting brackets for cabinet body M-DUO/SNI-2
Mounting brackets for wooden doors M-DUO-MAXI/1NI or brackets for aluminium profiles or adapter for glass doors

DUO FORTE selection tables and mounting diagrams

Click the link and select the required page

Mounting diagrams available in catalogue pages:

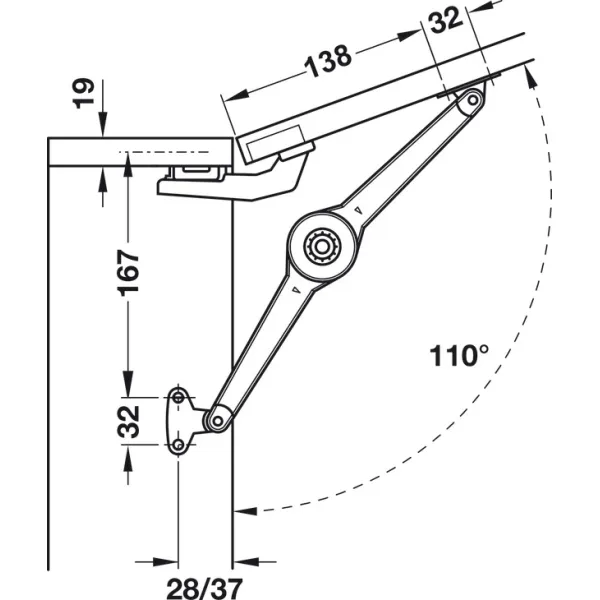

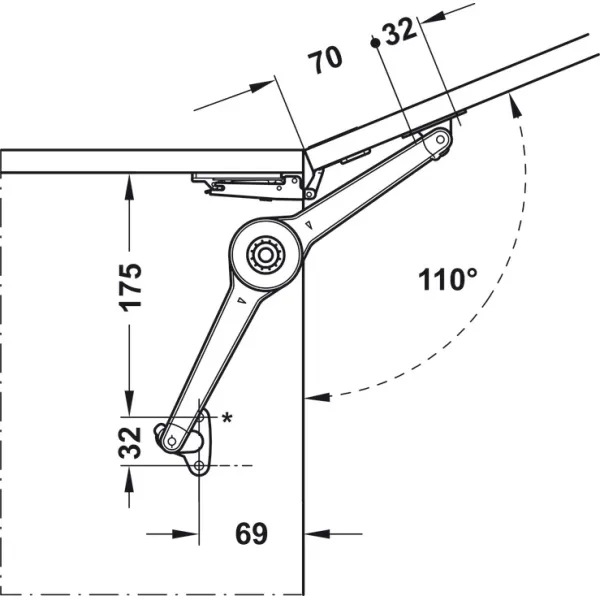

p. 5.242 – upward-opening doors with handles

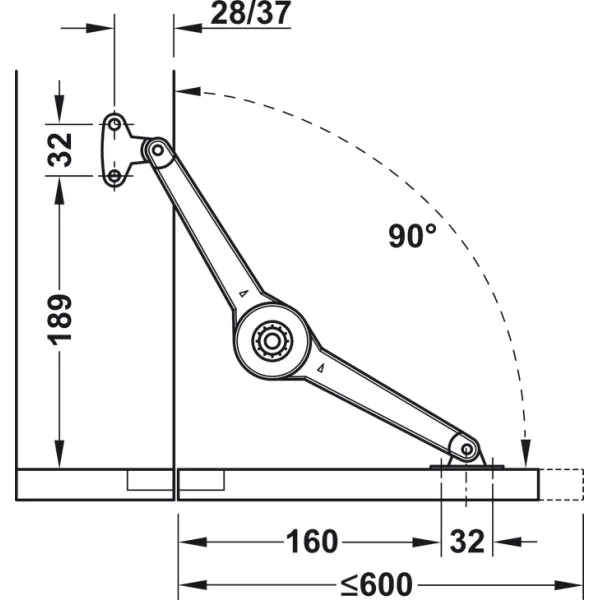

p. 5.244 – downward-opening doors with handles

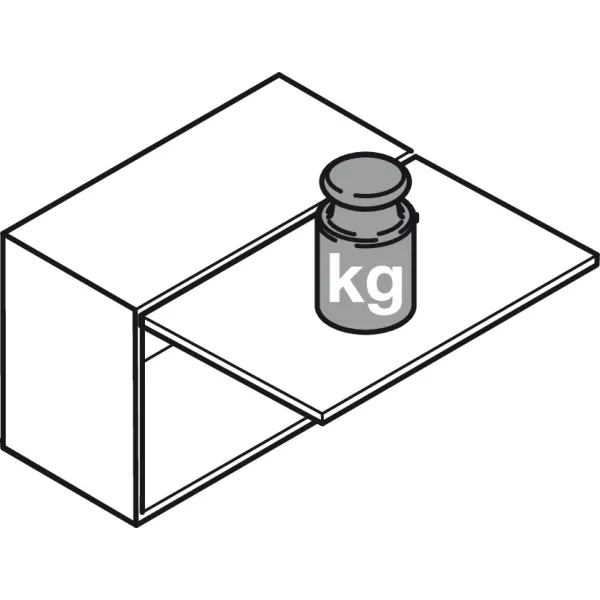

Tables indicate lifting weight for 1 and 2 mechanisms

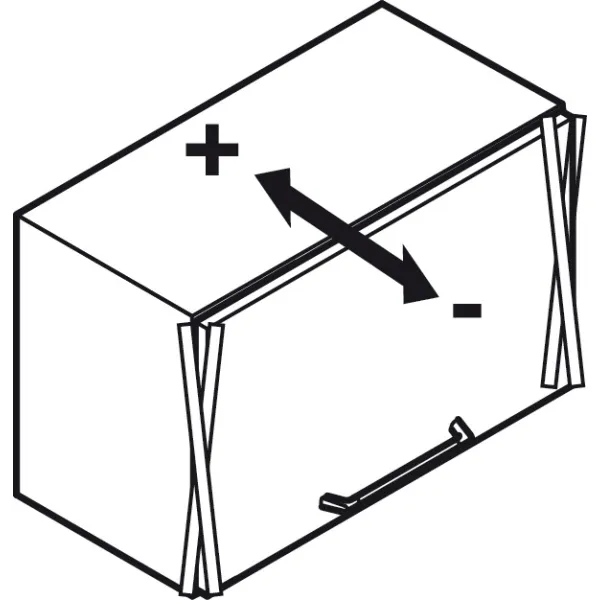

For doors wider than 600 mm, use 2 mechanisms

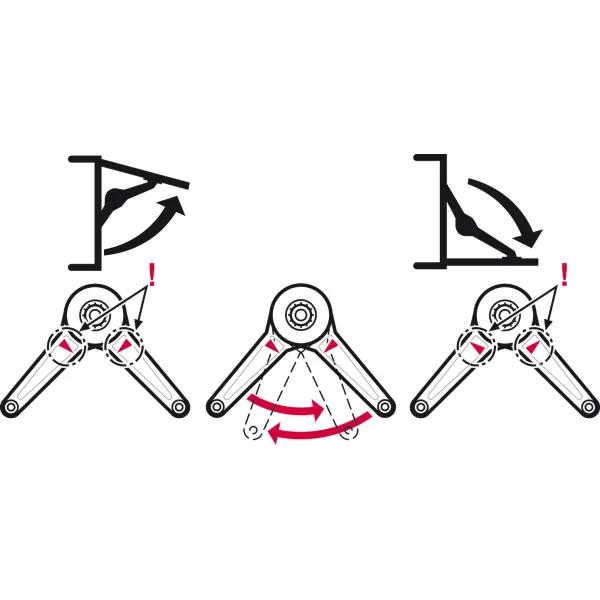

IMPORTANT: Mounting diagrams vary based on door opening angle and door opening version!

"Locking function" – door lifts manually and can be held at any height

"Braking function" – door locks only when fully opened, with soft-close feature

Magnets with plates for securing downward-opening doors are sold separately

Product Details

Data sheet

Brand	Häfele
Material	zinc alloy
Colour	nickel
External module height, mm	200-700
Supplied with	1 lid stay, 1 set of installation instructions
Vendor item no.	373.66.700
