Lid stay/flap stay, Häfele Duo standard, individual fitting

Name: Lid stay/flap stay, Häfele Duo standard, individual fitting
Brand: Häfele
SKU: M-DUO/SB-1
Price: 19.25 EUR
Availability: PreOrder

Item code: M-DUO/SB-1

€19.25

pcs (with VAT)

Item is not in stock and is available for special order only.

Delivery time: 7-15 business days*

Universal mechanism for lifting or lowering cabinet doors Technical specifications: Recommended for doors with a height of 200–500 mm: When door weight ...

Min. 1

pcs

favorite_border

Product variations

Colour

Description
Product Details

Description

Universal mechanism for lifting or lowering cabinet doors

Technical specifications:

Recommended for doors with a height of 200–500 mm:
- When door weight is 2–9 kg, use 1 mechanism
- When door weight is 5–15 kg, use 2 mechanisms

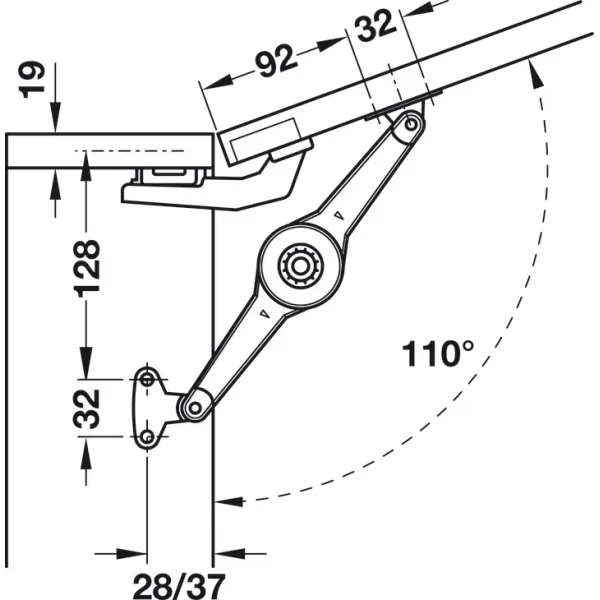

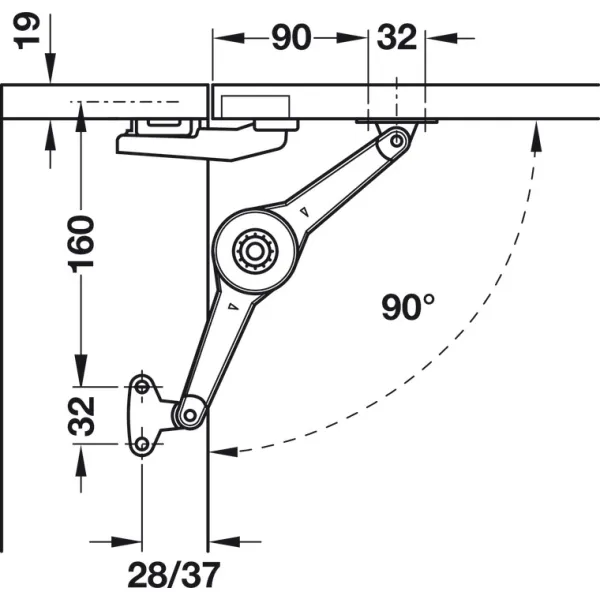

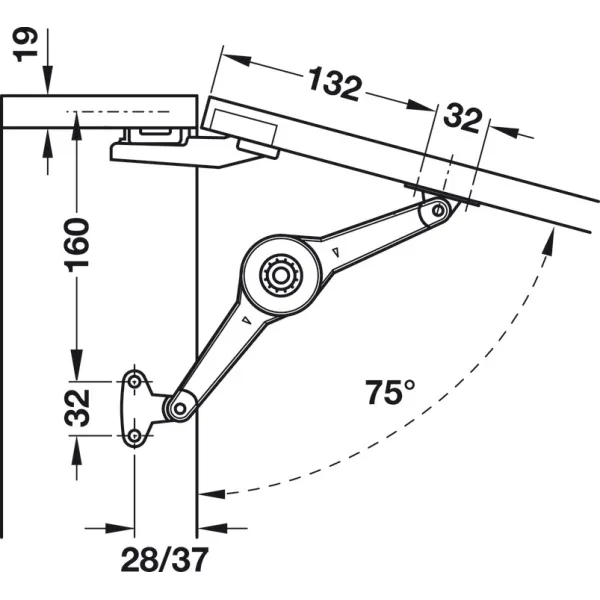

75°/90°/110° opening angle depending on mounting method
For downward-opening doors, a magnet is recommended for secure closure

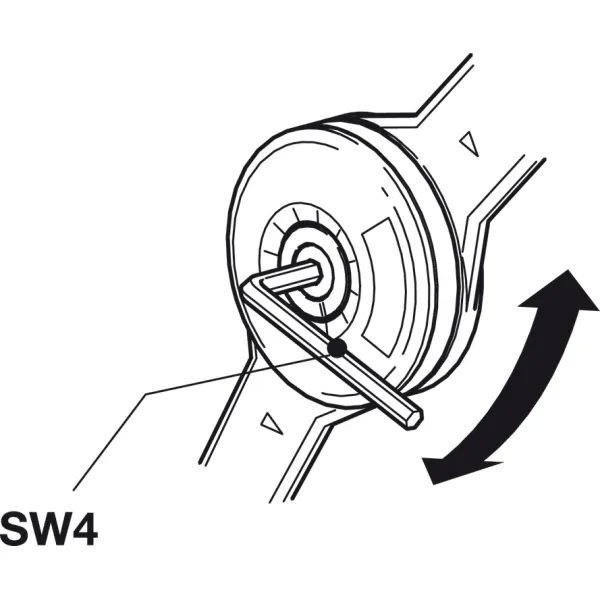

Lifting/lowering force adjustable via hex key SW4

Sold separately:

Mounting brackets for cabinet body M-DUO/SNI-2
Mounting brackets for wooden doors M-DUO-MAXI/1NI, brackets for aluminium profiles or adapter for glass doors

DUO STANDART selection tables and mounting diagrams

Click the link and select the required page

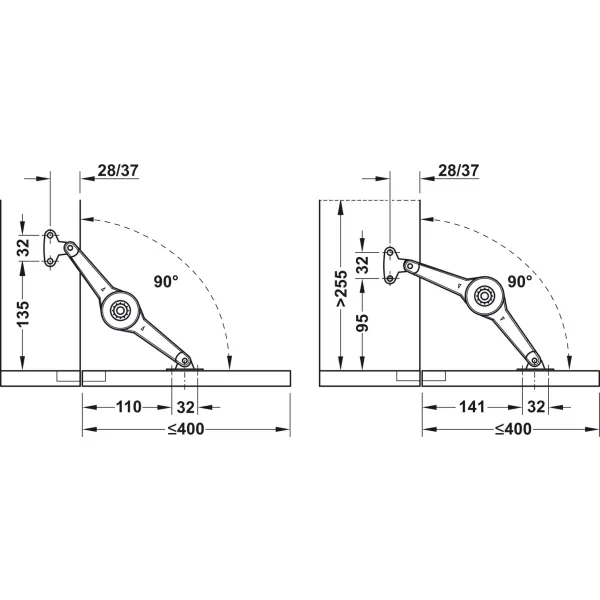

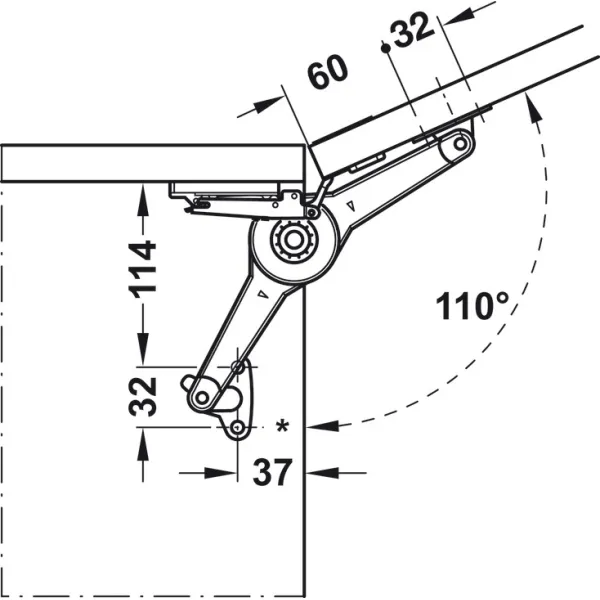

Mounting diagrams available in catalogue pages:

p. 5.240 – upward- and downward-opening doors with handles

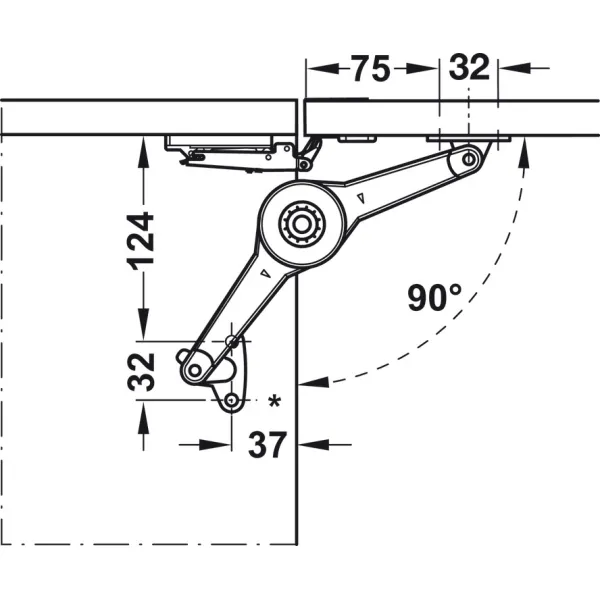

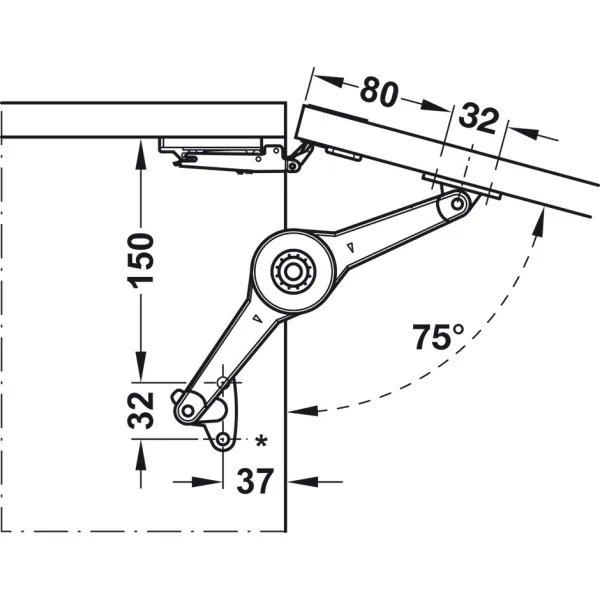

p. 5.241 – handleless upward-opening doors with Push function, manually lifted and held at any height

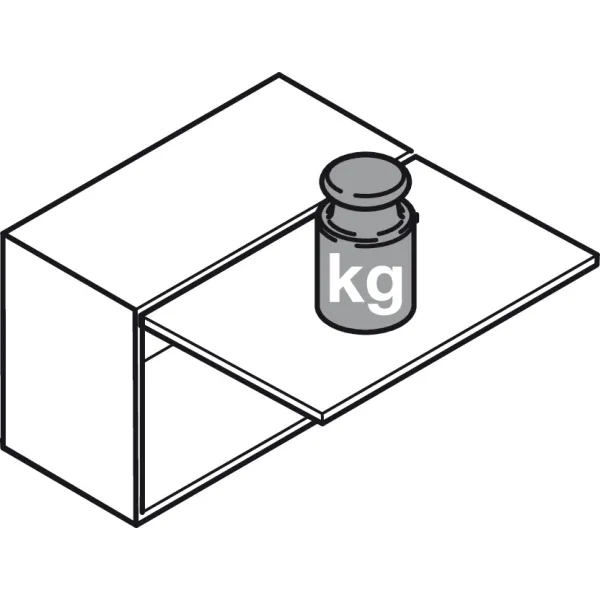

Tables indicate lifting weight for 1 and 2 mechanisms

For doors wider than 600 mm, use 2 mechanisms

IMPORTANT: Mounting diagrams vary based on door opening angle and version!

"Locking function" – door lifts manually and can be held at any height

"Braking function" – door locks only when fully opened, with soft-close feature

Magnets with plates for securing downward-opening doors are sold separately

Product Details

Data sheet

Brand	Häfele
Material	zinc alloy
Colour	white
External module height, mm	200-500
Supplied with	1 lid stay, 1 set of installation instructions
Vendor item no.	373.66.250
