Lid stay/flap stay, Häfele Duo standard, individual fitting

Name: Lid stay/flap stay, Häfele Duo standard, individual fitting
Brand: Häfele
SKU: M-DUO/SJ-1
Price: 19.25 EUR
Availability: PreOrder

Item code: M-DUO/SJ-1

€19.25

pcs (with VAT)

Item is not in stock and is available for special order only.

Delivery time: 7-15 business days*

Universal mechanism for lifting or lowering cabinet doors Technical specifications: Recommended for doors with a height of 200–500 mm: When door weight ...

Min. 1

pcs

favorite_border

Product variations

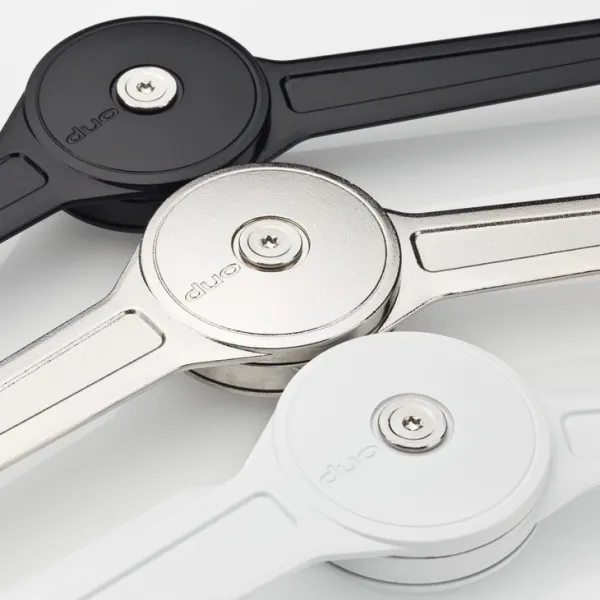

Colour

Description
Product Details

Description

Universal mechanism for lifting or lowering cabinet doors

Technical specifications:

Recommended for doors with a height of 200–500 mm:
- When door weight is 2–9 kg, use 1 mechanism
- When door weight is 5–15 kg, use 2 mechanisms

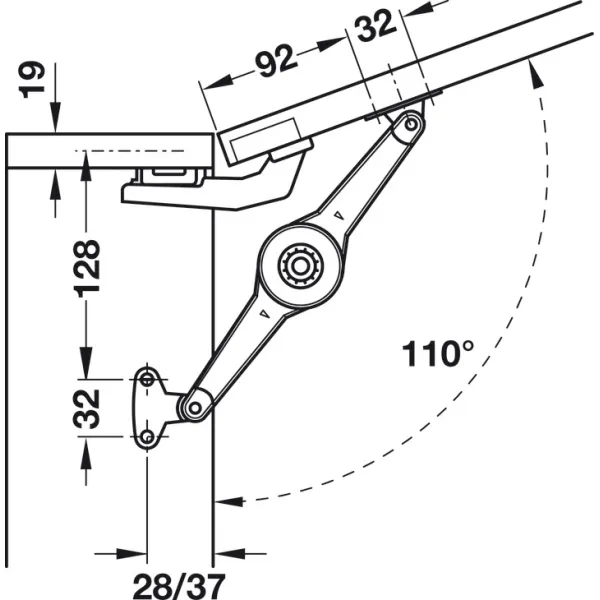

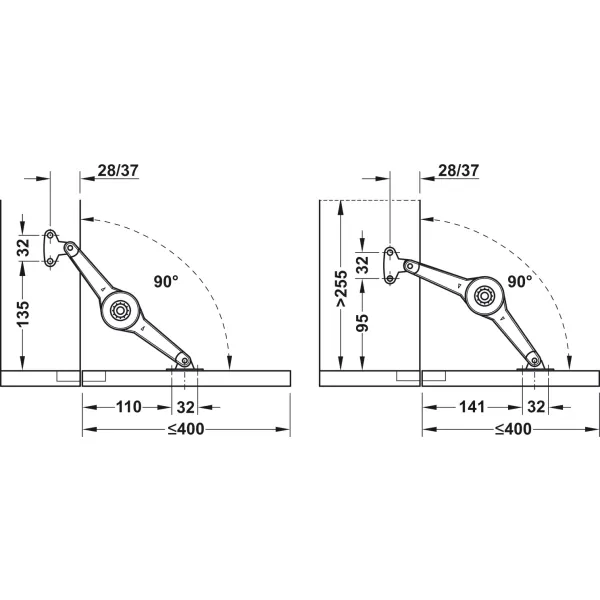

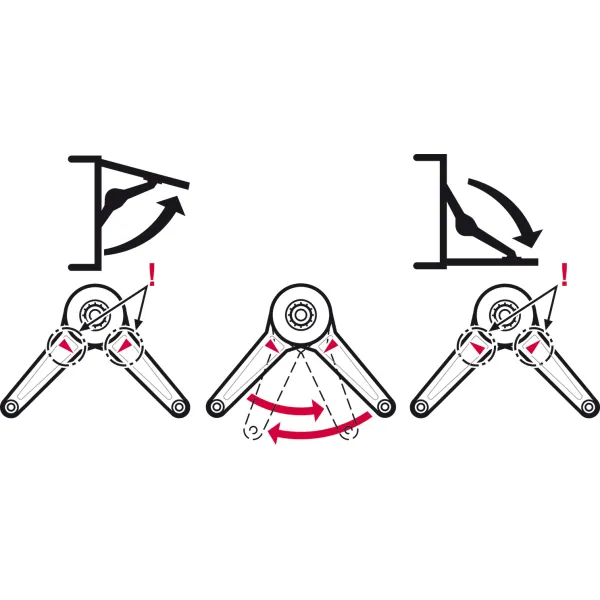

75°/90°/110° opening angle depending on mounting method
For downward-opening doors, a magnet is recommended for secure closure

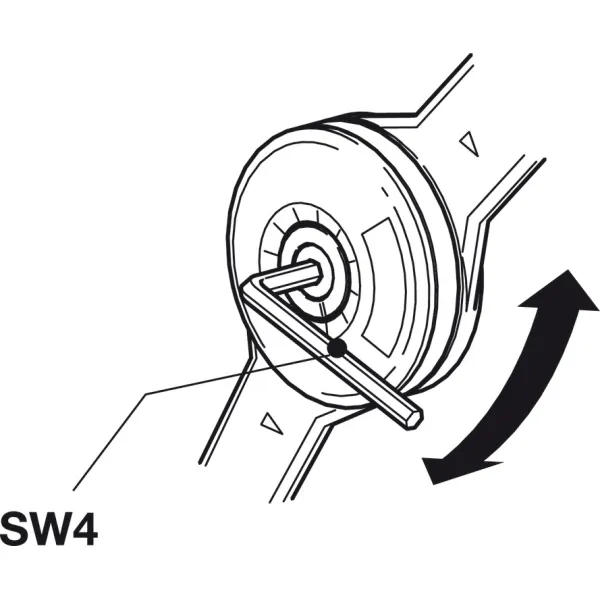

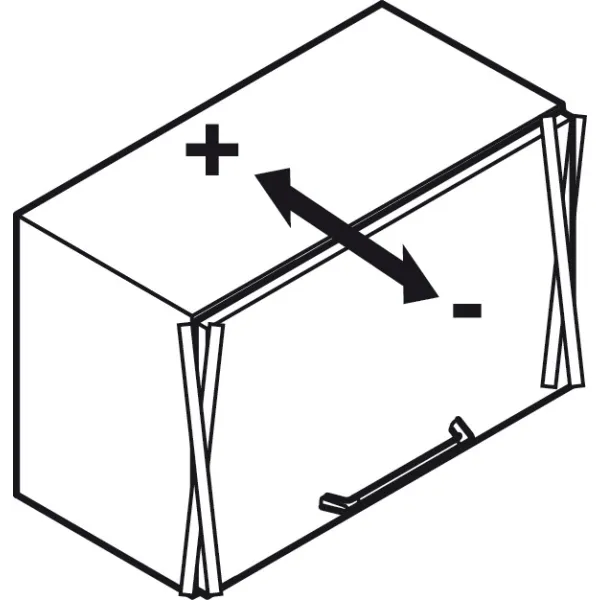

Lifting/lowering force adjustable via hex key SW4

Sold separately:

Mounting brackets for cabinet body M-DUO/SNI-2
Mounting brackets for wooden doors M-DUO-MAXI/1NI, brackets for aluminium profiles or adapter for glass doors

DUO STANDART selection tables and mounting diagrams

Click the link and select the required page

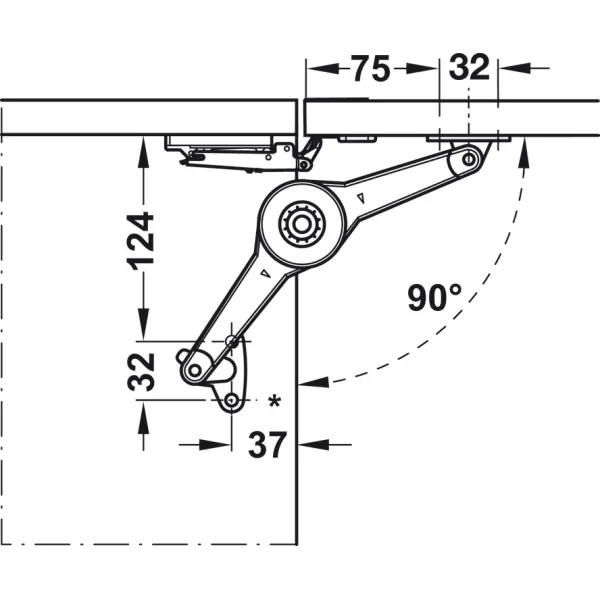

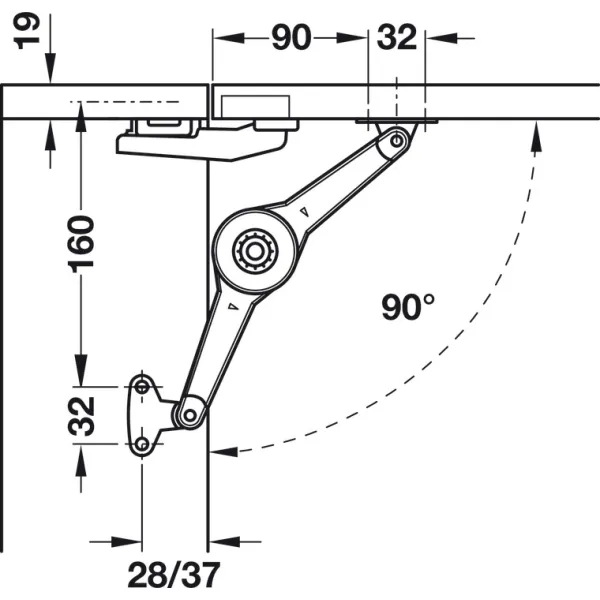

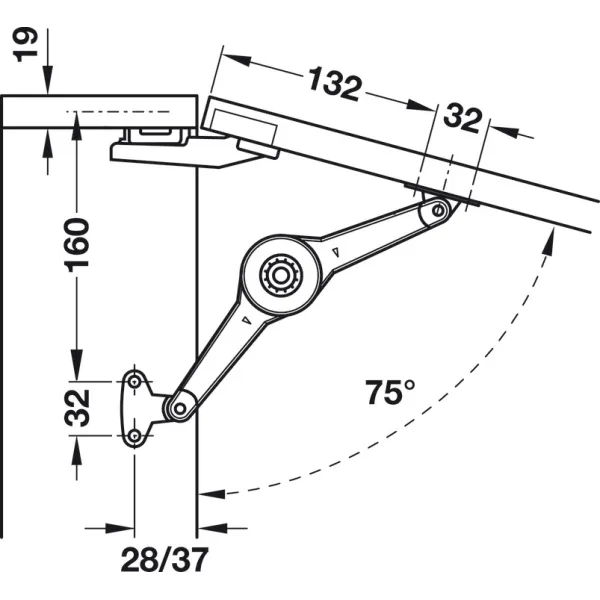

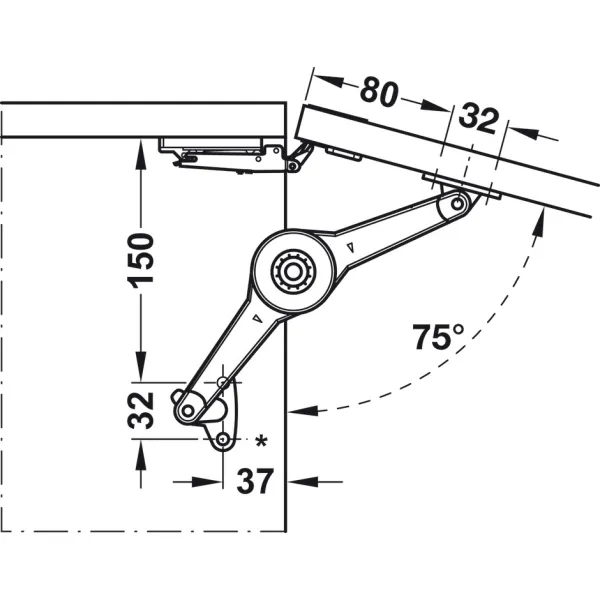

Mounting diagrams available in catalogue pages:

p. 5.240 – upward- and downward-opening doors with handles

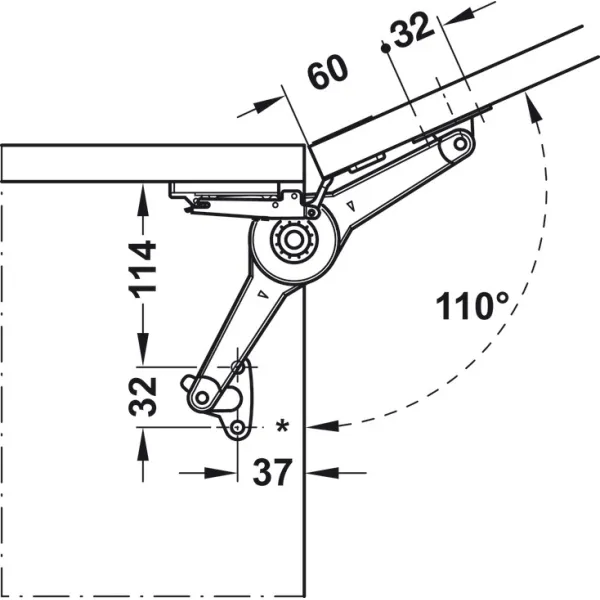

p. 5.241 – handleless upward-opening doors with Push function, manually lifted and held at any height

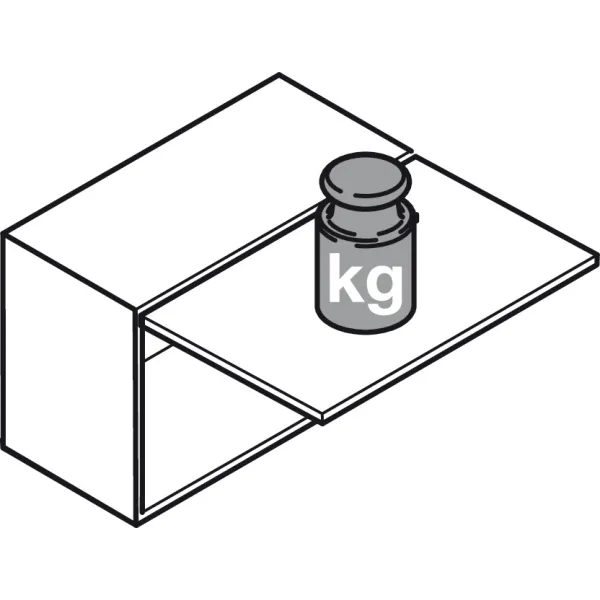

Tables indicate lifting weight for 1 and 2 mechanisms

For doors wider than 600 mm, use 2 mechanisms

IMPORTANT: Mounting diagrams vary based on door opening angle and version!

"Locking function" – door lifts manually and can be held at any height

"Braking function" – door locks only when fully opened, with soft-close feature

Magnets with plates for securing downward-opening doors are sold separately

Product Details

Data sheet

Brand	Häfele
Material	zinc alloy
Colour	black
External module height, mm	200-500
Supplied with	1 lid stay, 1 set of installation instructions
Vendor item no.	373.66.200

Product photos are for illustrative purposes only. The actual appearance, colors, configuration, dimensions, and other features of the products may differ from those shown in the images. For accurate information, please refer to the product descriptions, technical specifications, instructions, and provided links.
