BRASA MANUFACTURES. Aluminium - Glass doors and partition systems

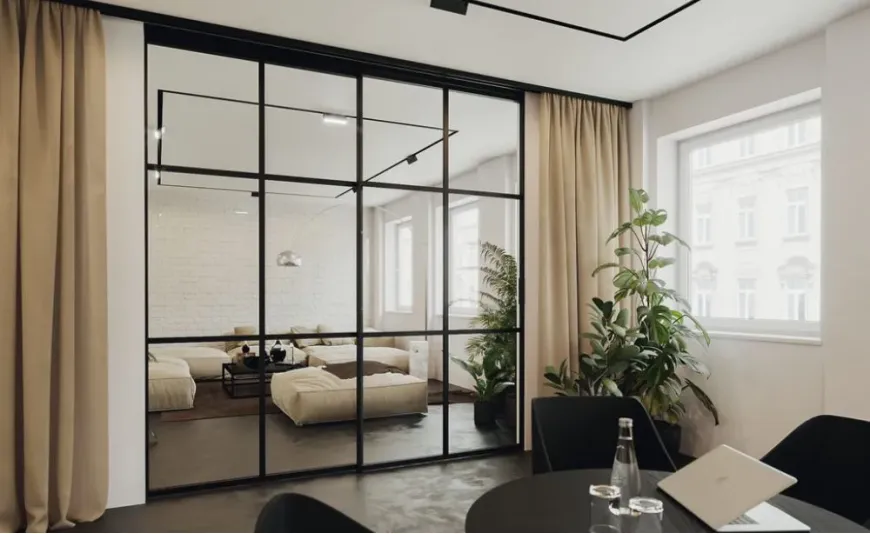

ALUMINIUM – GLASS DOORS AND PARTITIONS
We are excited to introduce a new category in our product range! From now on, we manufacture sliding doors and partitions made of aluminium profiles with glass – fully tailored to your individual orders.
CHOOSE 1 → 4 AND SEND US YOUR REQUEST.
- 1. Choose a sliding door system.
- 2. Specify the required dimensions.
- 3. Select the desired profile color.
- 4. Indicate the glass code or full name.
OFFERED SERVICES
We cut door profiles precisely to the dimensions you provide.
We offer painting of door and partition frame profiles in the color of your choice.

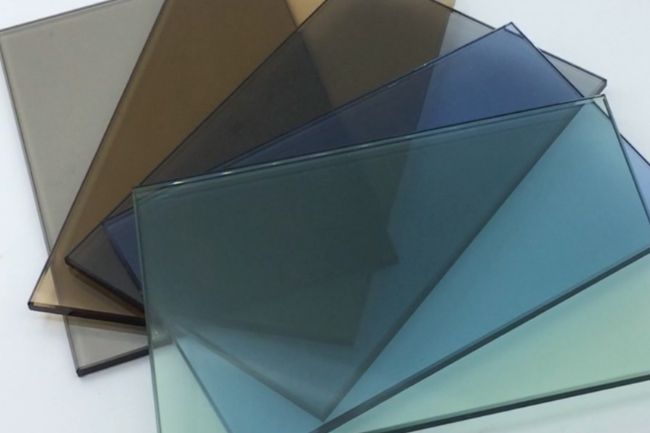

We assemble sliding doors and partitions with the glass you select. You can choose from any glass available on the market – just provide the glass code or full name.
- Powder coating according to the RAL color palette. Specify the surface finish – sand effect or level of gloss in percentages (100% – full gloss, 0% – matte);
- Wet painting.

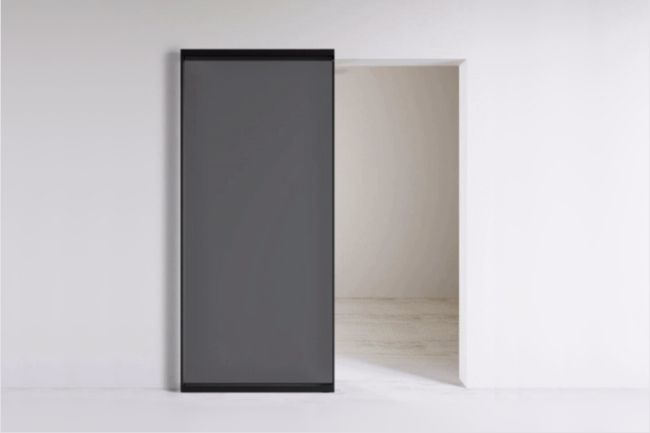

SLIDING DOOR SYSTEM – MAGIC
Have you ever dreamed of a sleek, minimalist interior without visible tracks or bulky sliding door mechanisms? It’s possible with the MAGIC sliding door system – the Häfele SLIDO D-Line 43 80N MAGIC solution!

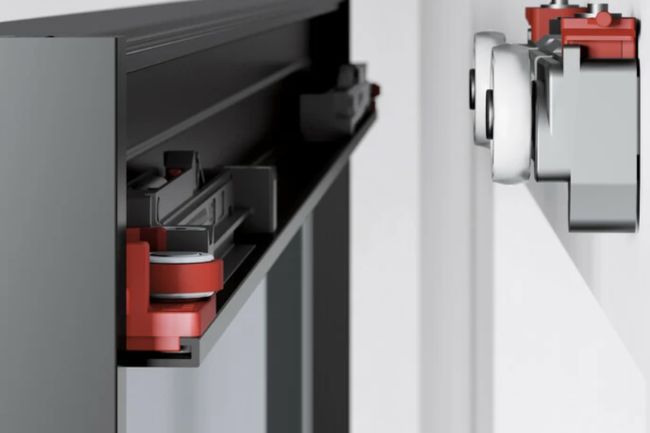

Magic is one of the most advanced architectural sliding door systems, combining a patented "invisible" sliding mechanism with a durable aluminium frame. All mechanisms are completely hidden, creating the effect of doors "floating in the air".
System designed for 1 door;
Integrated soft-close and self-closing mechanism;
Side wall mounting, top track integrated into the aluminium profile frame;
Recommended panel thickness:
- tempered glass thickness: 5, 6 or 8 mm;
- laminated glass thickness: 6–8.7 mm.
Recommended door:
- weight: up to 80 kg;
- width: 800–1500 mm;
- height: up to 3000 mm*.
*Door height and width parameters are adjusted to the specific client case.

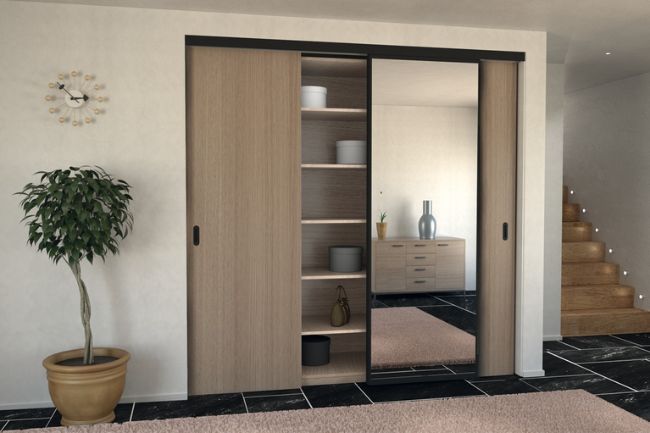

SLIDING DOOR AND PARTITION SYSTEM
Slido D-Line 11 50/80C
D-Line 11 C is a high-quality architectural sliding door system ensuring smooth, silent, and effortless door operation. Opening and closing the door is extremely easy and comfortable, requiring minimal force – 18N (50 kg) or 21N (80 kg), so even heavy doors glide effortlessly. Fixed (partition) solutions are also available.
Various door and partition combinations available;
System is compatible with pocket-type profiles;
System types:
- without soft-close, with stopper;
- integrated soft-close and self-closing mechanism in one direction;
- integrated soft-close and self-closing mechanism in both directions.
Hanging system. Top mounting to the ceiling or side mounting to the wall, with top track fixed in place.
Recommended panel thickness:
- tempered glass thickness: 5, 6 or 8 mm;
- laminated glass thickness: 6–8.7 mm.
Recommended segment:
- weight: up to 50 or 80 kg;
- width: up to 1500 mm*;
- height: up to 3000 mm*.
*Segment height and width parameters are adjusted to the specific client case.
LET’S TALK
We invite you to contact us for custom solutions or consultations. Our team is ready to help you bring your project to life.
Send your inquiries and orders via email.
