Support profiles for AIR hinge mounting to cabint, for recessed mounting, with hinge grooves, planel thickness 18mm, L630mm, titanium
Item code: L-S6X/P18T
Item code copied!
Support profiles for AIR hinge mounting to cabint, for recessed mounting, with hinge grooves, planel thickness 18mm, L630mm, titanium
Item code: L-S6X/P18T
Item code copied!
€98.58
pair
(with VAT)
Item in stock.
Delivery time: 1-3 business days*

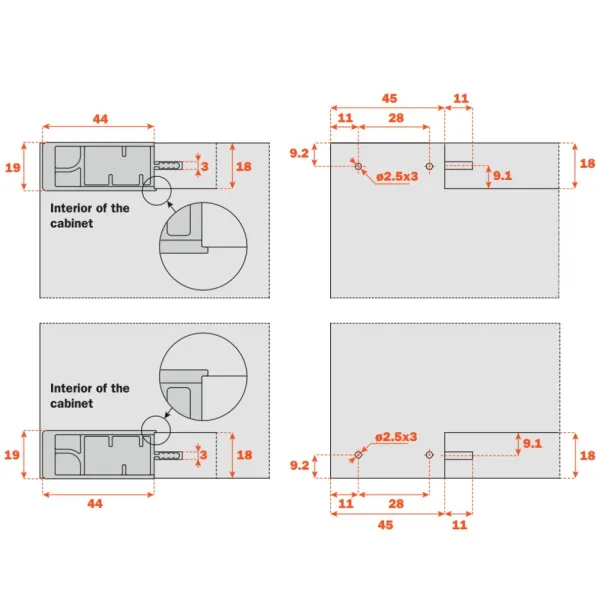

Support profile set for AIR concealed hinge mounting to cabinet. The profile set is designed for fast and precise cabinet mounting of AIR concealed hinges. The profiles feature pre-machined hinge grooves, eliminating the need for additional edge milling on the cabinet. The aluminium profile ensures stable and reliable support, even with heavier doors.
Technical specifications:
- For recessed mounting into the cabinet;
- Suitable for 18 mm thick top and bottom cabinet panels;
- When using this profiles, the top and bottom panels must be made shallower;
- Maximum internal cabinet width – 630 mm;
- The profiles can be cut to size – the cut must be made on the side opposite the hinge groove.
Set includes:
- 2 pcs – profiles for one AIR hinge set installation (top and bottom);
- 4 pcs – mounting plates with screws.
Data sheet
| Brand | Salice |
|---|---|
| Length, mm | 630 |
| Material | aluminium |
| Panel thickness, mm | 18 |
| Width, mm | 55 |
| Series | Air |
| Colour | titanium |
| Thickness, mm | 19 |
| Side | right+left |
Product photos are for illustrative purposes only. The actual appearance, colors, configuration, dimensions, and other features of the products may differ from those shown in the images. For accurate information, please refer to the product descriptions, technical specifications, instructions, and provided links.
